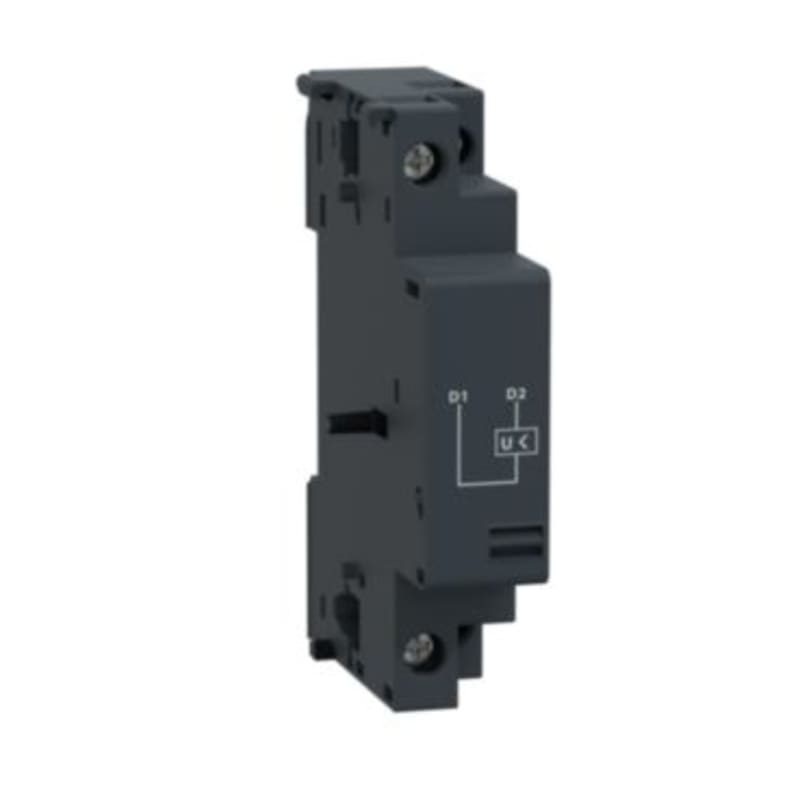

Schneider Electric TeSys GV2 & GV3 - undervoltage trip - 380...400V AC 50Hz GVAU385

Schneider Electric GVAU385 Undervoltage release 380V 50HZ GV2.

Manufacturer part number (MPN)

GVAU385

EAN / GTIN

3389110346022

Sales unit

pcs

Package quantity

42 pcs

Voltage

380 V

Frequency

50 Hz

Range

TeSys; TeSys Deca

Product or component type

Undervoltage release

Device short name

GVAU

[Uc] control circuit voltage

380...400 V AC 50 Hz; 440 V AC 60 Hz

Range compatibility

TeSys GV2ME; TeSys GV2LE; TeSys GV2L; TeSys GV2P; TeSys GV3L; TeSys GV3P; TeSys Deca

Control circuit voltage limits

0.85...1.1 Un

[Ui] rated insulation voltage

690 V AC conforming to IEC 60947-1; 600 V AC conforming to UL 60947-4-1; 600 V AC conforming to CSA C22.2 No 60947-4-1

Threshold tripping voltage

0.7...0.35 Un

Inrush power in VA

12 VA AC

Inrush power in W

8 W

Hold-in power consumption in VA

3.5 VA AC

Hold-in power consumption in W

1.1 W

Operating time

10...15 ms conforming to IEC 60947-1

On-load factor

100 %

Connections - terminals

Screw clamp terminals 1 cable(s) 1…2.5 mm²solid; Screw clamp terminals 2 cable(s) 1…2.5 mm²solid; Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end

Tightening torque

< 1.4 N.m on screw clamp terminals

Mechanical durability

10000 cycles with GV3P and GV3L; 30000 cycles with GV2ME and GV2P

Quantity per set

Set of 10

Height

89 mm

Width

18 mm

Depth

66 mm

Product weight

0.105 kg

Colour

Dark grey

Country of origin

CZ

Warranty (in months)

18

Delayed

No

Suitable for off-load switch

No

Suitable for overload relay

No

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

380–400 V

Rated control supply voltage AC 60 Hz

440 V

Suitable for motor safety switch

Yes

Suitable for power circuit breaker

Yes

Voltage type for actuating

AC

HS Code

8536.50
