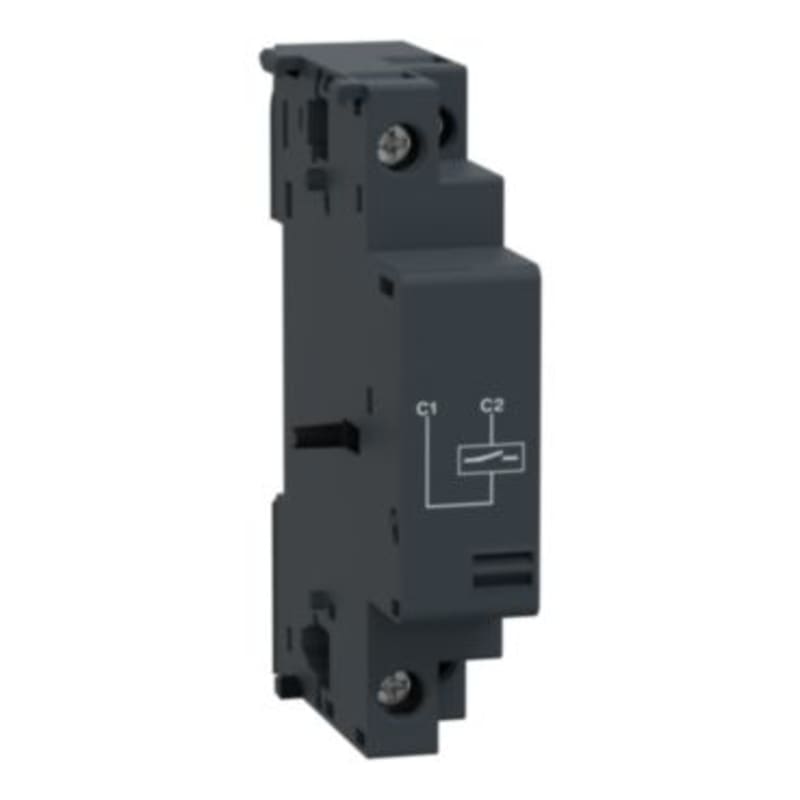

Schneider Electric TeSys GV2 & GV3 - shunt trip - 220...240 V AC 50 Hz GVAS225
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GVAS225 Shunt trip 220 50HZ GV2.
Technical Specifications
- Manufacturer part number (MPN)
- GVAS225
- EAN / GTIN
- 3389110343724
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Frequency
- 50 Hz
- Range
- TeSys; TeSys Deca
- Product or component type
- Shunt trip release
- Device short name
- GVAS
- [Uc] control circuit voltage
- 220...240 V AC 50 Hz
- Range compatibility
- TeSys GV2ME; TeSys GV2LE; TeSys GV2L; TeSys GV2P; TeSys GV3L; TeSys GV3P; TeSys Deca
- Control circuit voltage limits
- 0.7...1.1 Un
- [Ui] rated insulation voltage
- 690 V AC conforming to IEC 60947-1; 600 V AC conforming to UL 60947-4-1; 600 V AC conforming to CSA C22.2 No 60947-4-1
- Threshold tripping voltage
- 0.75...0.2 Un
- Inrush power in VA
- 14 VA AC
- Inrush power in W
- 10.5 W
- Hold-in power consumption in VA
- 5 VA AC
- Hold-in power consumption in W
- 1.6 W
- Operating time
- 10...15 ms conforming to IEC 60947-1
- On-load factor
- 100 %
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…2.5 mm²solid; Screw clamp terminals 2 cable(s) 1…2.5 mm²solid; Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
- Tightening torque
- < 1.4 N.m on screw clamp terminals
- Mechanical durability
- 10000 cycles with GV3P and GV3L; 30000 cycles with GV2ME and GV2P
- Quantity per set
- Set of 10
- Height
- 89 mm
- Width
- 18 mm
- Depth
- 66 mm
- Product weight
- 0.105 kg
- Colour
- Dark grey
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Country of origin
- CZ
- Warranty (in months)
- 18
- Suitable for off-load switch
- No
- Suitable for overload relay
- No
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 220–240 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3389110343724
- SAP 1000022396
- Code 8177198
