Pilot Light Head,RED
Pricing
Request a quote
We reply within 24 hours
Product Description

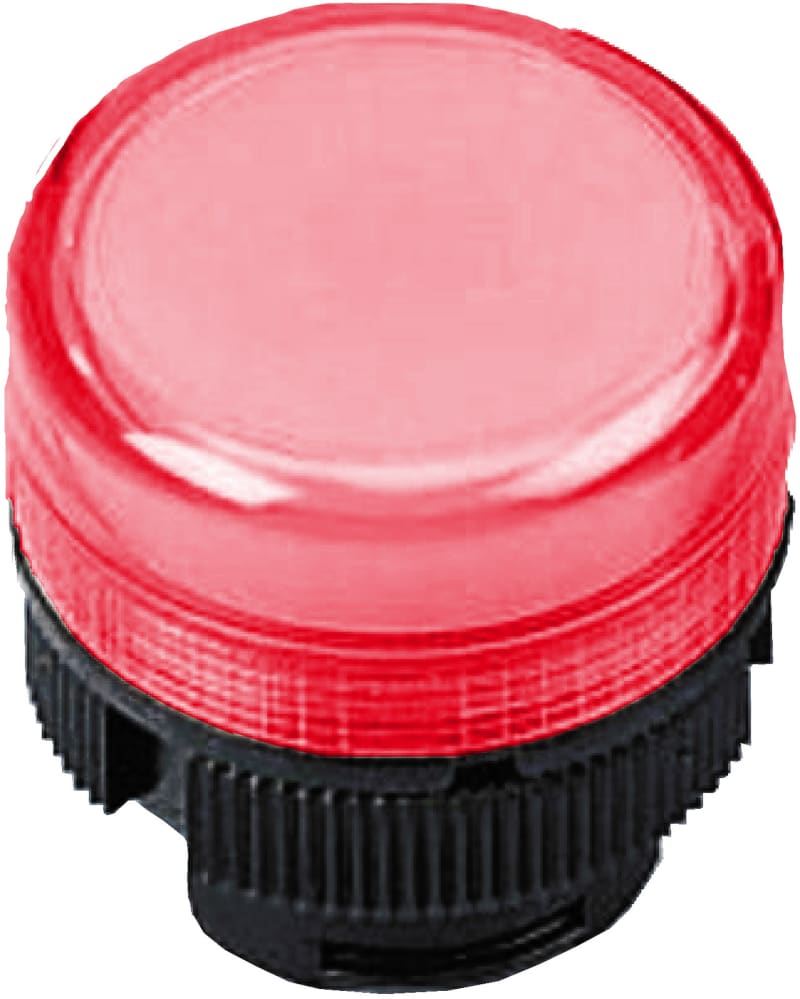

Schneider Electric ZA2BV04 Pilot Light Head Red.
Technical Specifications
- Manufacturer part number (MPN)
- ZA2BV04
- EAN / GTIN
- 3389110645378
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony
- Product or component type
- Head for pilot light
- Product specific application
- For incandescent bulb
- Cap/operator or lens colour
- Red
- Mechanical durability
- 1000000 cycles
- Product weight
- 0.015 kg
- Compatibility code
- ZA2B
- Standards
- IEC 60947-5-1
- Protective treatment
- TH
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Electrical shock protection class
- Class II conforming to IEC 61140
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 100
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour lens
- Red
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65/IP67
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- High
- Degree of protection (NEMA)
- 4X, 13
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110645378
- SAP 1000063247
- Code 8889403
