Micrologic 6.0E for NS withdrawable
Pricing
Request a quote
We reply within 24 hours
Product Description

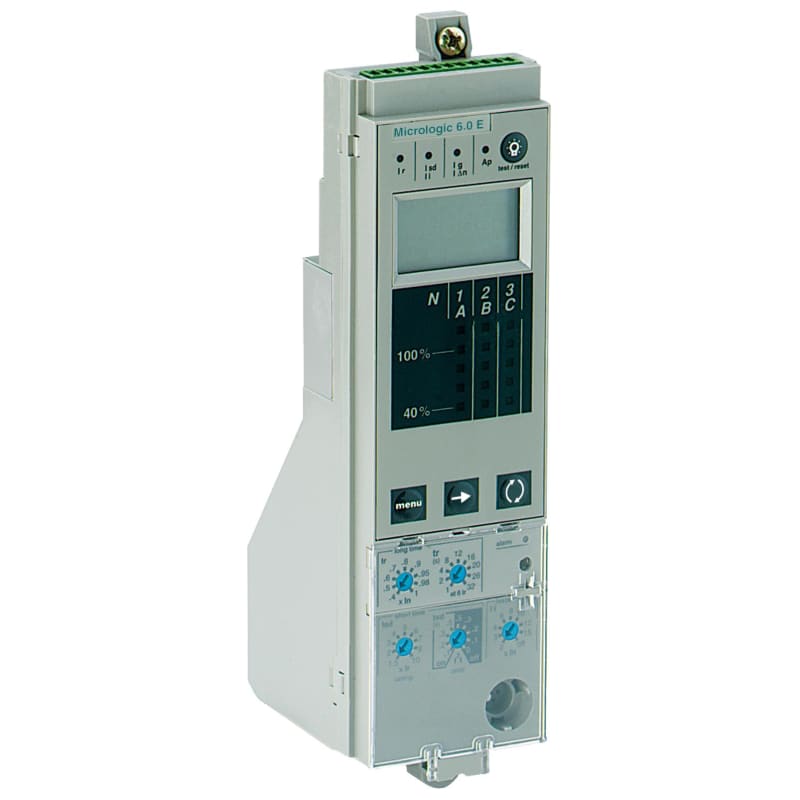

Schneider Electric 33540 Micrologic 6.0E for NS withdrawable
Technical Specifications
- Manufacturer part number (MPN)
- 33540
- EAN / GTIN
- 3606480344725
- Sales unit
- pcs
- Trip unit
- Micrologic 6.0E
- Width
- 53.6 mm
- Height
- 199.5 mm
- Depth
- 67.5 mm
- Rated permanent current Iu
- 1600 A
- Number of poles
- 4
- Short-circuit release function
- Delayed
- Overload release current setting
- 252–1600 A
- Voltage type (supply voltage)
- DC
- External power supply required
- Yes
- Rated control supply voltage DC
- 24 V
- With ground fault protection function
- Yes
- Rated switch current
- 1600 A
- Supply voltage DC
- 24 V
- End value adjustment range undelayed short-circuit release
- 24000 A
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Type of motor protection
- Electronic release
- Voltage type for actuating
- Self powered
- Current setting undelayed short-circuit release
- 3200–24000 A
- Current setting delayed short-circuit release
- 378–16000 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 9030.39
Cross References
- EAN 3606480344725
- SAP 1200501631
- Code 82626372
Product Documentation
