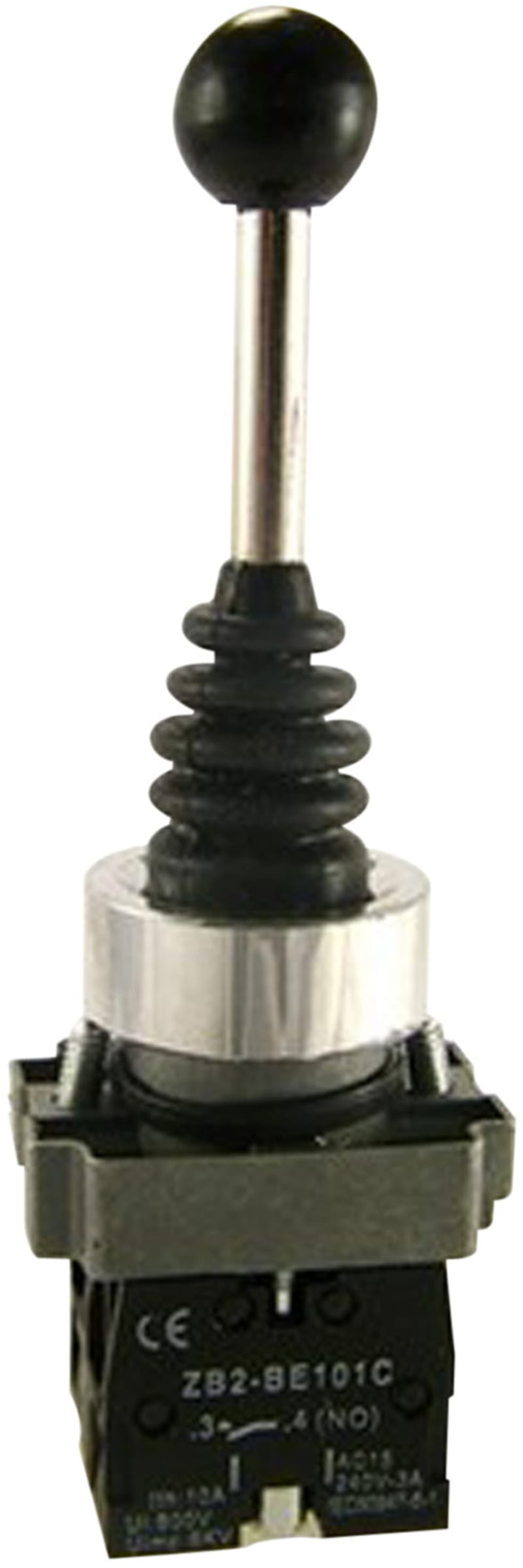

Controller (XD2LC21)

Schneider Electric XD2LC21 Kontroller.

Manufacturer part number (MPN)

XD2LC21

EAN / GTIN

3389110633856

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XD2

Product or component type

Complete joystick controller

Device short name

XD2

Mounting diameter

30 mm

Bezel material

Chromium plated metal

Operator position information

All positions

Notch per direction

1

Operator direction information

2 directions

Contacts type and composition

2 NC for time delayed

Short-circuit protection

10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1

Connections - terminals

Captive screw clamp terminals, 2 x 1.5 mm² with or without cable end; Captive screw clamp terminals, 1 x 2.5 mm² with or without cable end

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Contact code designation

A600-Q600

Overvoltage category

Class I conforming to IEC 61140

Mechanical durability

1000000 cycles

fixing center

60 x 100 mm

Return

to 0 position

Height

156 mm

Depth

85 mm

Product weight

0.35 kg

Standards

EN/IEC 60947-5-1

Product certifications

CSA

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Vibration resistance

25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

FR

Warranty (in months)

18

Number of switch positions

2

Rated operation current Ie at AC-21, 400 V

10 A

Centre mounting, hole diameter

30 mm

Number of actuation directions

2

With retraction in 0-position

Yes

Colour front ring

Chrome

Analogue output signal configurable

No

Degree of protection (IP)

IP65/IP67

Coder

No

Material front ring

Metal

With front ring

Yes

Locking in 0-position

No

Joy stick length

100 mm

Number of normally closed contacts per actuation direction

2

HS Code

8536.50

• EAN 3389110633856
• SAP 1000028639
• Code 8209726
