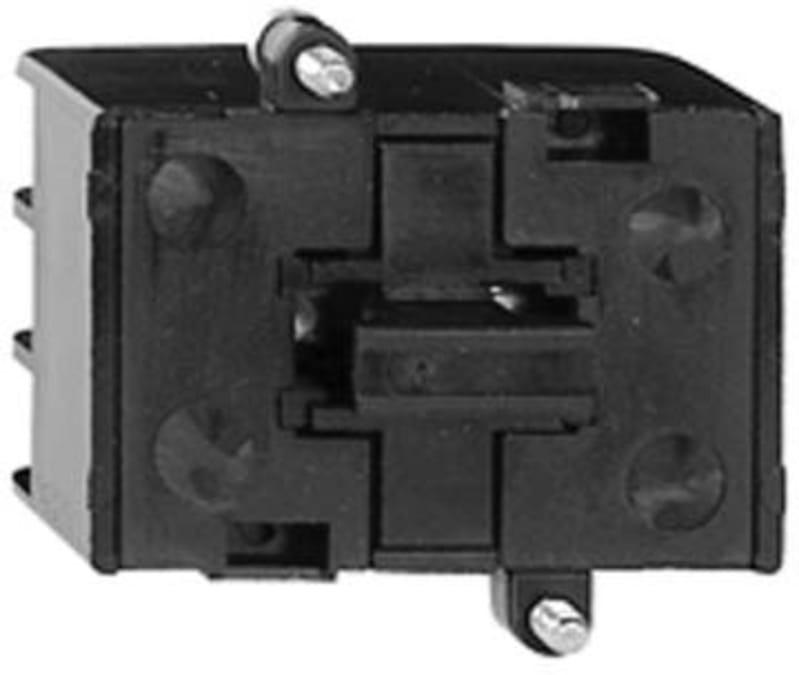

Contact element (XENT1991)

Schneider Electric XENT1991 Contact Element.

Manufacturer part number (MPN)

XENT1991

EAN / GTIN

3389110609103

Sales unit

pcs

Package quantity

30 pcs

Range of product

Harmony XAC

Product or component type

Contact block

Component name

XENT

Electrical circuit type

Control circuit; Power circuit

Contact block application

Emergency stop push-button

Contact block type

Single

Type of operator

Spring return

Product compatibility

XACD

Contacts type and composition

3 NC

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Mechanical durability

3000000 cycles

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

400 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Short-circuit protection

6 A fuse protection by cartridge fuse type aM

Rated operational power in W

3000 W AC-23B at 400 V

Terminals description ISO n°1

(31-32)NC; (11-12)NC; (21-22)NC

Product weight

0.04 kg

Standards

IEC 60947-5-1; UL 508; CSA C22.2 No 14

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

70 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
