HIGH Intensity Flashing LED White
Pricing
Request a quote
We reply within 24 hours
Product Description

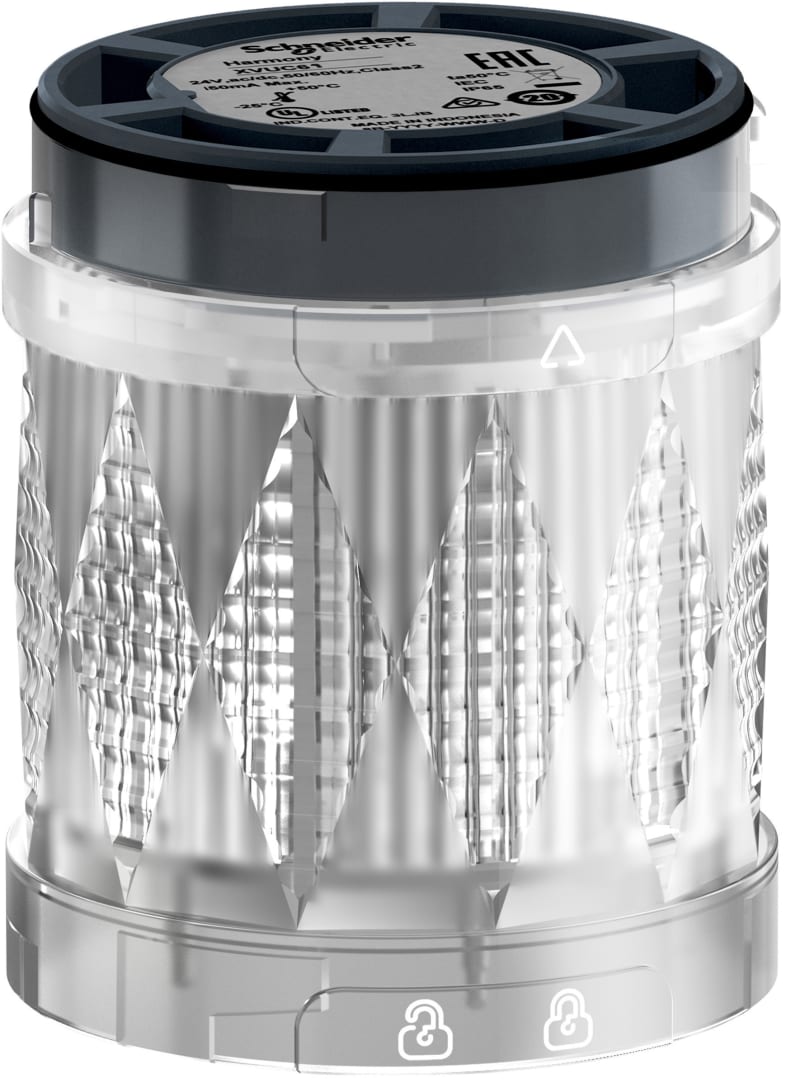

Schneider Electric XVUC67 Ø60 mm LED light unit for XVU lyskolonne in clear colour with heavy-duty flash.
Technical Specifications
- Manufacturer part number (MPN)
- XVUC67
- EAN / GTIN
- 3606480887109
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Range of product
- Harmony XVU
- Product or component type
- Modular tower light
- Beacon or indicator bank unit type
- LED unit
- Mounting diameter
- 60 mm
- Component name
- XVU
- Light source
- LED, white
- Device application
- Automotive; Packaging machine; Machine tools
- Signalling type
- High flashing
- Assembly style
- Customer assembly, up to 3 units
- Material
- PC (polycarbonate) V-2 conforming to UL 94
- [Us] rated supply voltage
- 24 V AC/DC
- Maximum power dissipation in W
- 2.8 W
- Current consumption
- <= 150 mA
- Length
- 60 mm
- Product weight
- 0.085 kg
- Product certifications
- UL; CSA; CE; EAC; RCM
- Ambient air temperature for storage
- -40…70 °C
- IP degree of protection
- IP65
- Ambient air temperature for operation
- -25…50 °C
- Vibration resistance
- 2 gn
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- Country of origin
- ID
- Warranty (in months)
- 18
- Outer diameter
- 60 mm
- Function
- Continuous-/flashing light
- Voltage type
- AC/DC
- Lamp type
- LED
- Degree of protection (IP)
- IP65
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480887109
- SAP 1200271346
- Code 82234202
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W300MM, 2 rows, set of 2 NSYSUCR6530
Schneider Electric
Metal plate 54X54 PLS
NSYPMM5454
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W2000MM, 2 rows, set of 2 NSYSUCR65200
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90MM W300MM, 3 rows, set of 2 NSYSUCR9030
Schneider Electric
Schneider Electric ZB4BP1 Harmony XB4 Push-Button Head — Ø22 mm, White, projecting, spring return, non-illuminated, metal bezel, booted
Schneider Electric
Schneider Electric braking resistor - 5 ohms - 6.9 kW - IP23 VW3A7746
Schneider Electric
Schneider Electric APC NetShelter SX, Server Rack Enclosure, 45U, Black, 2124H x 750W x 1200D mm AR3355
Schneider Electric

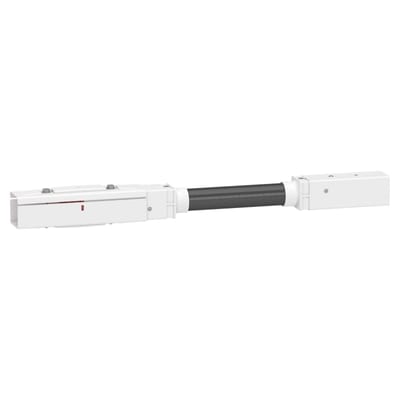

Flexible 40A 0,5M 3L+3L+N TW
