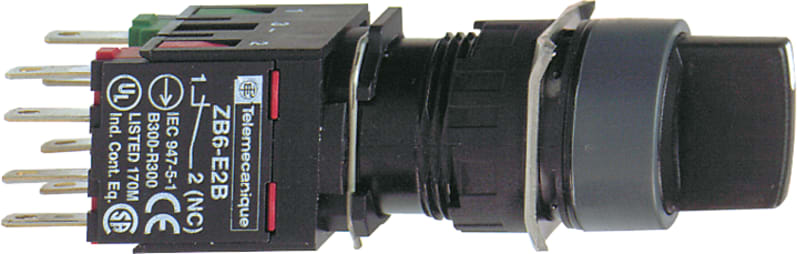

Schneider Electric Selector switch, Harmony XB6, black round, 16mm, 3 positions, stay put, 1NO + 1NC XB6AD235B

Schneider Electric XB6AD235B Control device 16mm, complete units.

Manufacturer part number (MPN)

XB6AD235B

EAN / GTIN

3389110764611

Sales unit

pcs

Package quantity

60 pcs

Diameter

16 mm

Range of product

Harmony XB6

Product or component type

Complete selector switch

Device short name

XB6

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

1

Operating position

Any position

Shape of signaling unit head

Square

Type of operator

stay put

Operator profile

Black standard handle

Operator position information

3 positions 60°

Contacts type and composition

2 NO

Contact operation

Slow-break

Height

18 mm

Width

18 mm

Depth

68 mm

Terminals description ISO n°1

(21-22)NC; (13-14)NO

Product weight

0.024 kg

Positive opening

With conforming to IEC 60947-5-1 appendix K

Mechanical durability

500000 cycles

Connections - terminals

Faston connectors, connection size: 2.8 x 0.5 mm

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1; 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1; 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

NEMA degree of protection

NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94

Standards

UL 508; CSA C22.2 No 14; IEC 60947-1; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-5-5; JIS C 852; JIS C8201-1

Product certifications

GOST; UL; CCC; CSA

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Warranty (in months)

18

Hole diameter

16.2 mm

Colour button

Black

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Type of electric connection

Flat plug-in connection

Degree of protection (IP)

IP65/IP67

With light source

No

Material front ring

Plastic

With front ring

Yes

Type of control element

Short rotary handle

Switching function latching

Yes

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8536.50
