Lamp Body with TEST F/BA9S <250V

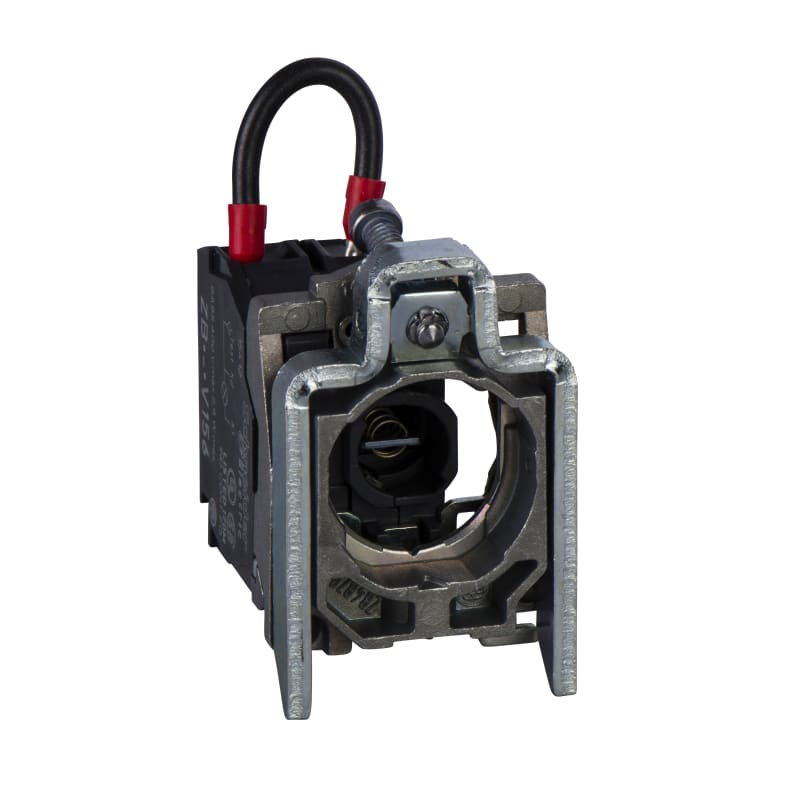

Schneider Electric ZB4BV156 Lamp Body With Test <250V BA9S.

Manufacturer part number (MPN)

ZB4BV156

EAN / GTIN

3389110071689

Sales unit

pcs

Range of product

Harmony XB4

Product or component type

Complete body/light block assembly

Device short name

ZB4

Fixing collar material

Zamak

Sale per indivisible quantity

1

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end

Light source

Bulb not included

Bulb base

BA 9s

Light block supply

Direct <2.4 W

[Us] rated supply voltage

<= 250 V

CAD overall width

30 mm

CAD overall height

47 mm

CAD overall depth

37 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.062 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Signalling type

Steady

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

Standards

CSA C22.2 No 14; IEC 60947-1; UL 508; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; JIS C8201-5-1; JIS C8201-1

Product certifications

DNV; UL listed; LROS (Lloyds register of shipping); BV; CSA

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.4 cm

Package 1 Width

4.4 cm

Package 1 Length

5.4 cm

Package 1 Weight

61.0 g

Unit Type of Package 2

S02

Number of Units in Package 2

50

Package 2 Height

15 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

3.35 kg

Country of origin

FR

Warranty (in months)

18

Lamp holder

BA9s

Transformer integrated

Yes

With integrated voltage decreasing resistor

No

With integrated diode

No

Lamp type

Incandescent lamp

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

0–250 V

Rated voltage Ue at AC 60 Hz

0–250 V

Rated voltage Ue at DC

0–250 V

Voltage type for actuating

AC/DC

HS Code

8531.80
