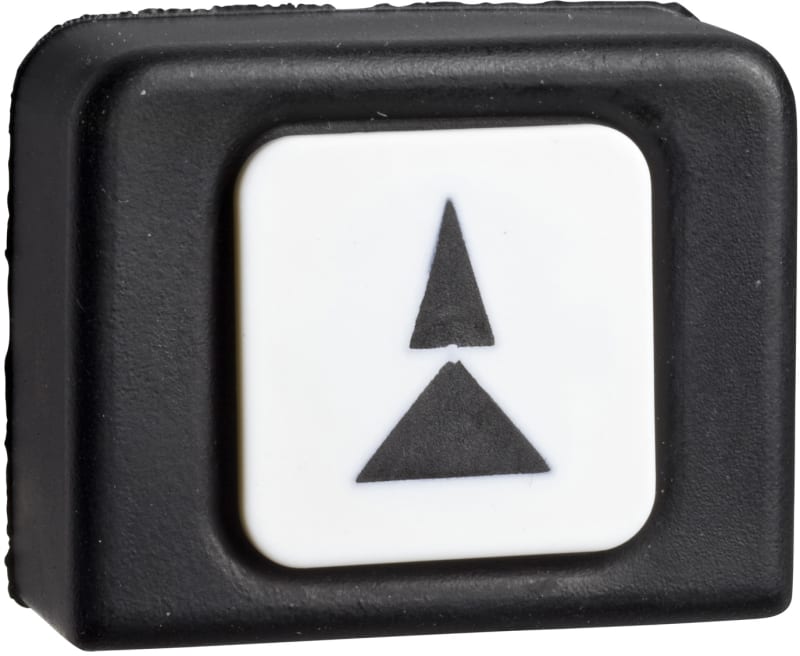

Push-button for XACA217 arrow up
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XACA923 Push-button for XACA217 arrow up.
Technical Specifications
- Manufacturer part number (MPN)
- XACA923
- EAN / GTIN
- 3389110740141
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range of product
- Harmony XAC
- Product or component type
- Head for push-button
- Component name
- XACA
- Marking
- Raise, slow-fast
- Operator additional information
- Booted
- Product compatibility
- XACA217.
- Product weight
- 0.01 kg
- Standards
- CSA C22.2 No 14; IEC 60947-5-1; IEC 60204-32; UL 508; IEC 60204-32; IEC 60947-5-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Grey
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65/IP67
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Square
- Switching function latching
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110740141
- SAP 1000260209
- Code 81146083
Product Documentation
