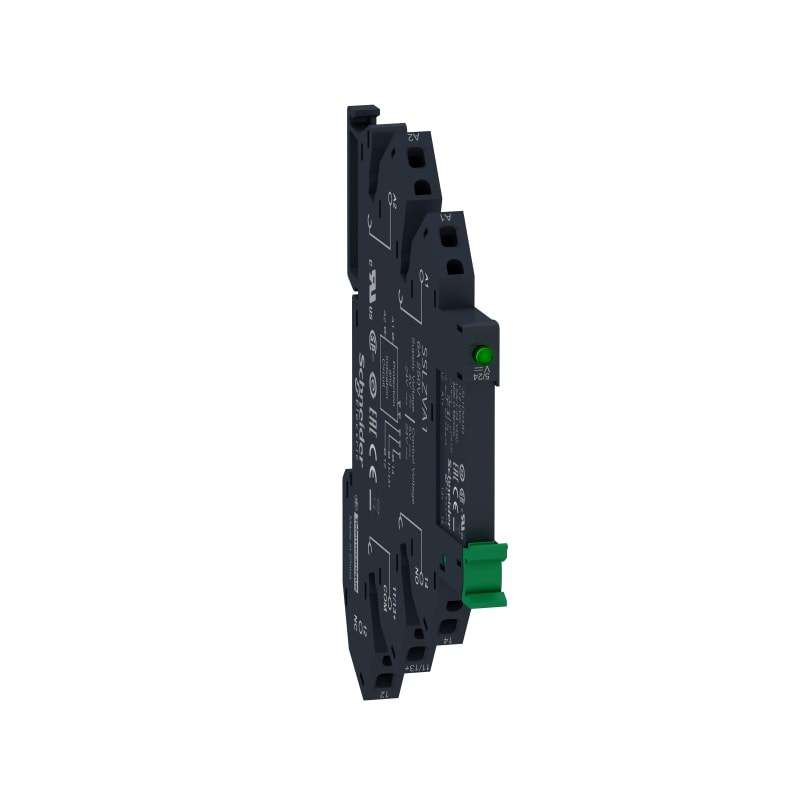

Schneider Electric Harmony, Solid state relay pre assembled, 3.5 A, DC switching, spring sockets, input 4…12 V DC, output 1...24 V DC SSL1D03JDPR

Schneider Electric SSL1D03JDPR Zelio SSL Slim SSR in plinth (spring) - 3,5A/1-24VDC output and 12VDC supply.

Manufacturer part number (MPN)

SSL1D03JDPR EAN / GTIN: 3606489563011 HS code: 8536.90 Sales unit: pcs Package quantity: 30 pcs Voltage: 12 V DC Range of product: Harmony Solid State Relays Device short name: SSL Network number of phases: 1 phase [Uc] control circuit voltage: 4...12 V Connections - terminals: Spring terminals Output switching mode: DC switching Mounting support: Spring socket [In] rated current: 3.5 A Output voltage: 1...24 V DC CLAMPING FORCE: 10...40 N.m Capacitance unbalance: 1.5 pF input/output minimum switching voltage: 4 V DC turn-on Maximum switching voltage: 1 V DC turn-off Input impedance: 500 Ohm Solid state output type: Mosfet output; DC switching Load current: 0.001…3.5 A Transient Overvoltage: 30 V DC Surge current: 9 A for 10 ms Maximum voltage drop: <0.5 V on-state Maximum leakage current: 0.001 mA off-state Response time: 0.12 ms (turn-off); 0.1 ms (turn-on) Overvoltage category: III Width: 6.2 mm Height: 104.6 mm Depth: 79.5 mm Product weight: 0.0285 kg Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Dielectric strength: 2500 V for input/output Pollution degree: 2 Standards: IEC 60950-1; IEC 61000; IEC 62314; IEC 61984; EN 61984 Product certifications: UL; CSA; CE; UL 508; CSA22.2 No. 14-10; GOST Marking: CURus; CSA; CE; EAC IP degree of protection: IP20 Ambient air temperature for operation: -20…70 °C Ambient air temperature for storage: -20…85 °C Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606489563011
• SAP 1200271568
• Code 82235725
