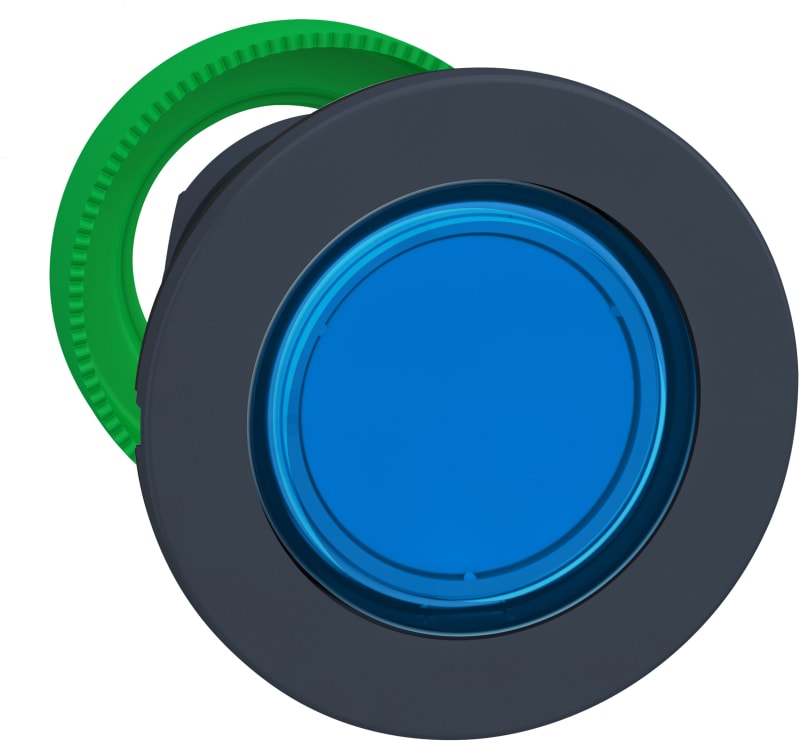

Indicator lamp flush blue (ZB5FV063)

Schneider Electric ZB5FV063 Pilot Light Head flush in plastic for LED in blue colour.

Manufacturer part number (MPN)

ZB5FV063

EAN / GTIN

3606481340771

HS code

8539.52

Sales unit

pcs

Package quantity

40 pcs

Range of product

Harmony XB5

Product or component type

Head for pilot light

Product compatibility

Universal LED

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

30.5 mm

Head type

Built-in-flush

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Blue

Operator additional information

With plain lens

CAD overall width

37 mm

CAD overall height

37 mm

CAD overall depth

30 mm

Product weight

0.015 kg

Electrical composition code

P1 in front mounting with integral LED; P2 in front mounting with integral LED and transformer; PF1 in front mounting with integral LED

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-5; JIS C8201-1; ISO 21702; ISO 22196:2011

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Warranty (in months)

18

HS Code

8539.52

• EAN 3606481340771
• SAP 1200094574
• Code 81957714
