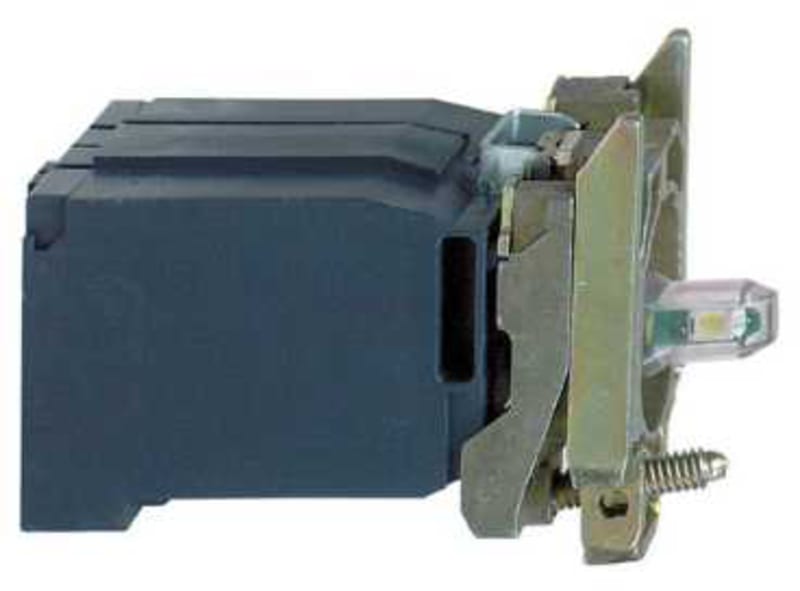

Schneider Electric green light block with body/fixing collar with BA9S LED bulb 400V ZB4BV5D3

Schneider Electric ZB4BV5D3 Lamp Body Green 400/LED BA9S.

Manufacturer part number (MPN)

ZB4BV5D3

EAN / GTIN

3389110892598

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Complete body/light block assembly

Device short name

ZB4

Fixing collar material

Zamak

Sale per indivisible quantity

1

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end

Light source

LED

Bulb base

BA 9s

Light block supply

Via integral transformer 1.2 VA 6 V

Light source colour

Green

[Us] rated supply voltage

400 V AC at 50/60 Hz

CAD overall width

30 mm

CAD overall height

47 mm

CAD overall depth

60 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.134 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Signalling type

Steady

Mounting of block

Front mounting

Electrical composition code

P4

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP20

Standards

IEC 60947-5-5; IEC 60947-5-1; IEC 60947-5-4; JIS C8201-5-1; UL 508; IEC 60947-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

DNV; UL listed; LROS (Lloyds register of shipping); BV; CSA

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.4 cm

Package 1 Width

5.4 cm

Package 1 Length

8.8 cm

Package 1 Weight

131.0 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

3.4 cm

Package 2 Width

8.8 cm

Package 2 Length

26.5 cm

Package 2 Weight

656.0 g

Unit Type of Package 3

S02

Number of Units in Package 3

50

Package 3 Height

15.0 cm

Package 3 Width

30.0 cm

Package 3 Length

40.0 cm

Package 3 Weight

6.898 kg

Country of origin

FR

Warranty (in months)

18

Lamp holder

BA9s

Transformer integrated

Yes

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

Green

Lamp type

LED

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

400 V

Rated voltage Ue at AC 60 Hz

400 V

Voltage type for actuating

AC/DC

HS Code

8531.80
