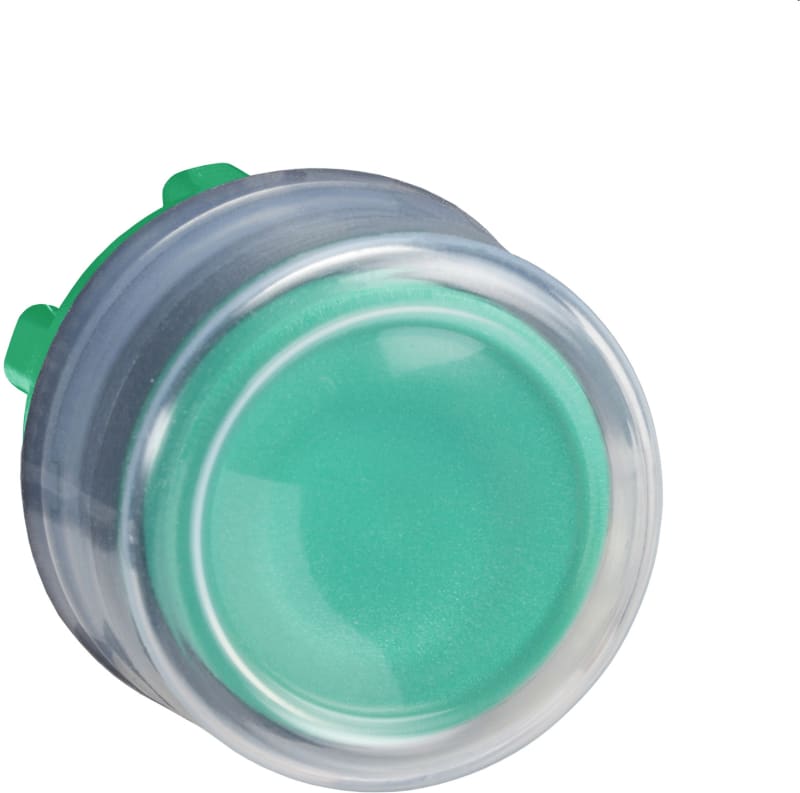

TR.BUTTON HEAD with SILIK.KAP.GREEN (ZB5AP38)

Schneider Electric ZB5AP38 Push-button With Silik.Kap.Green.

Manufacturer part number (MPN)

ZB5AP38

EAN / GTIN

3389110906660

Sales unit

pcs

Package quantity

25 pcs

Range of product

Harmony XB5

Product or component type

Head for non-illuminated push-button

Device short name

ZB5

Product compatibility

Not compatible with legend holder

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green flush, unmarked

Operator additional information

Clear boot for insertion of protected legend within head

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

37 mm

Product weight

0.023 kg

Mechanical durability

10000000 cycles

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C14 for <2 contacts using single blocks in front mounting; SF2 for <2 contacts using single blocks in front mounting; SR2 for <2 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; IEC 60947-5-4; IEC 60947-1; JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Number of Units in Package 1

1

Number of Units in Package 2

25

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Green

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Black

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

Country of origin

France

HS Code

8538.90
