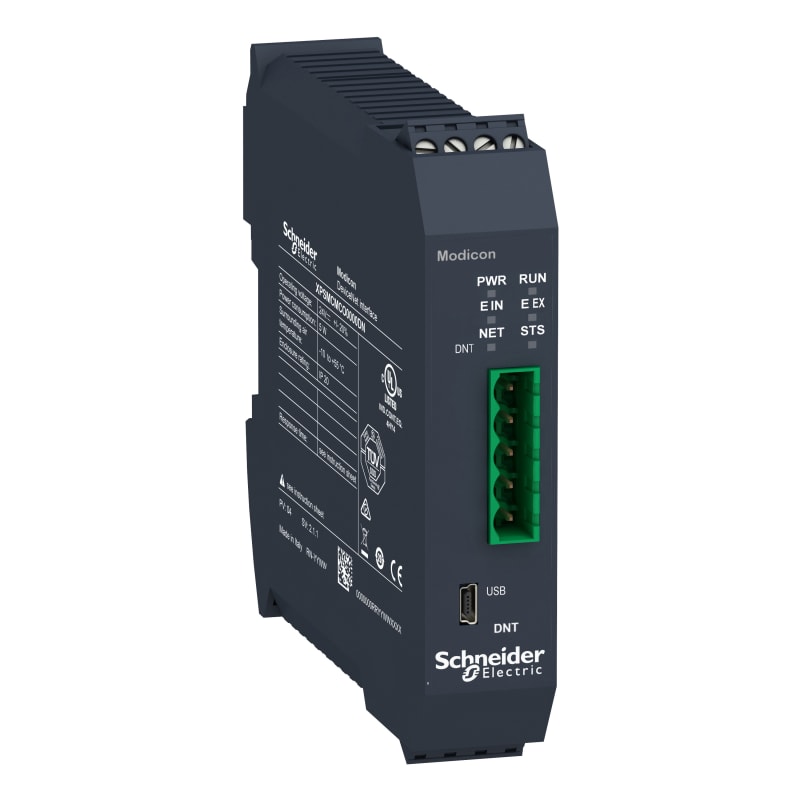

DeviceNet Diagnostic Expansion Module Screw Terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XPSMCMCO0000DN DeviceNet diagnostic expansion module for Modicon MCM with screw terminals.
Technical Specifications
- Manufacturer part number (MPN)
- XPSMCMCO0000DN
- EAN / GTIN
- 3606480748363
- Sales unit
- pcs
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Redundancy
- No
- Transmission rate
- 500 kBit/s
- With potential separation
- No
- SIL according to IEC 61508
- None
- Suitable for safety functions
- No
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 22.5 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480748363
- SAP 1200722305
- Code 83838487
Product Documentation
More from Schneider Electric
Schneider Electric

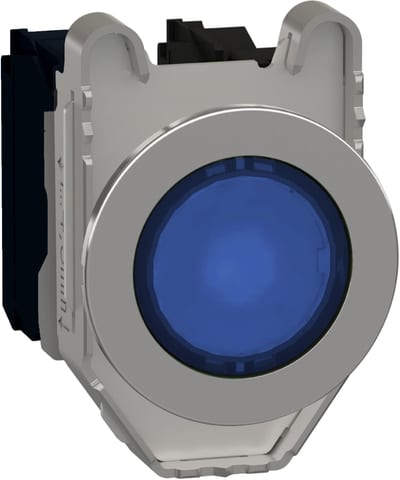

Schneider Electric Illuminated push button, Harmony XB4, metal, blue flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC XB4FW36B5
Schneider Electric

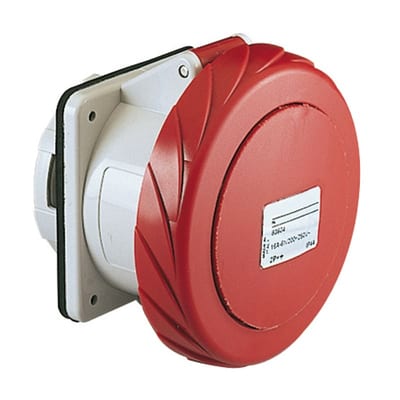

PratiKa Panel Socket Outlet, Straight, 125 A 3P+E 400 V
81694
Schneider Electric

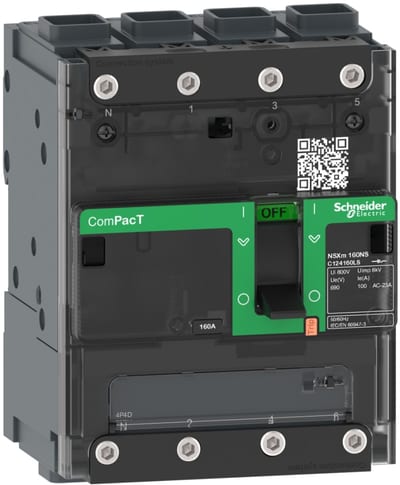

Schneider Electric switch disconnector ComPacT NSXm NA, 4P, 50 A rating, EverLink connectors C114050LS
Schneider Electric
Plinth EBI-15 Intellia with heating element
FFS06720015
Schneider Electric

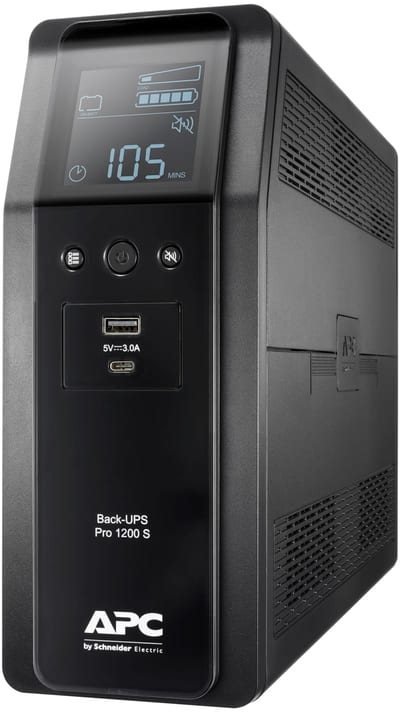

Schneider Electric APC Back-UPS Pro, 1200VA/720W, Tower, 230V, 8X IEC C13 outlets, Its Wave, AVR, USB Type A + C ports, LCD, User Replaceable Battery BR1200SI
Schneider Electric

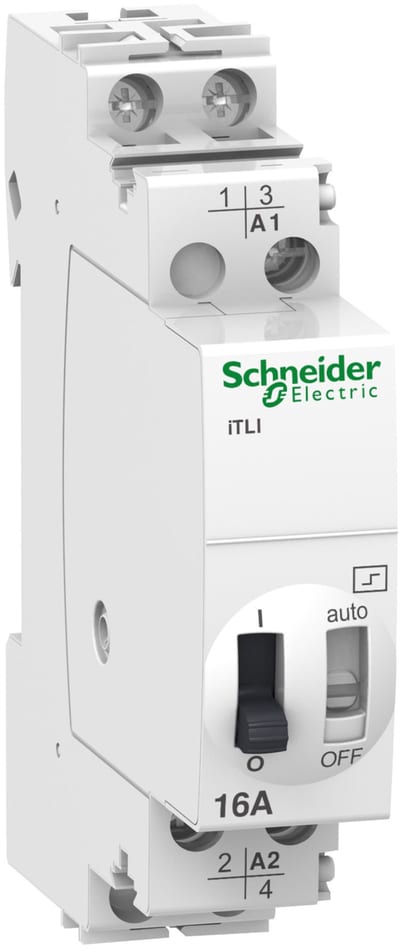

Schneider Electric impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 130 VAC 50/60HZ- 48 VDC A9C30315
Schneider Electric

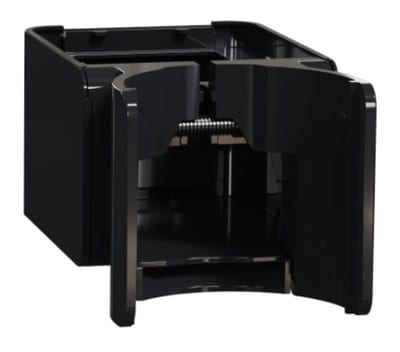

Module End Piece Branch Rod and Pole Anthracite
INS44308
Schneider Electric

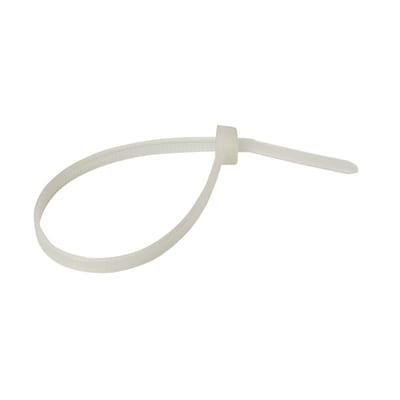

Schneider Electric Cable tie, Thorsman installation material, 370X4.8MM, clear IMT46422
