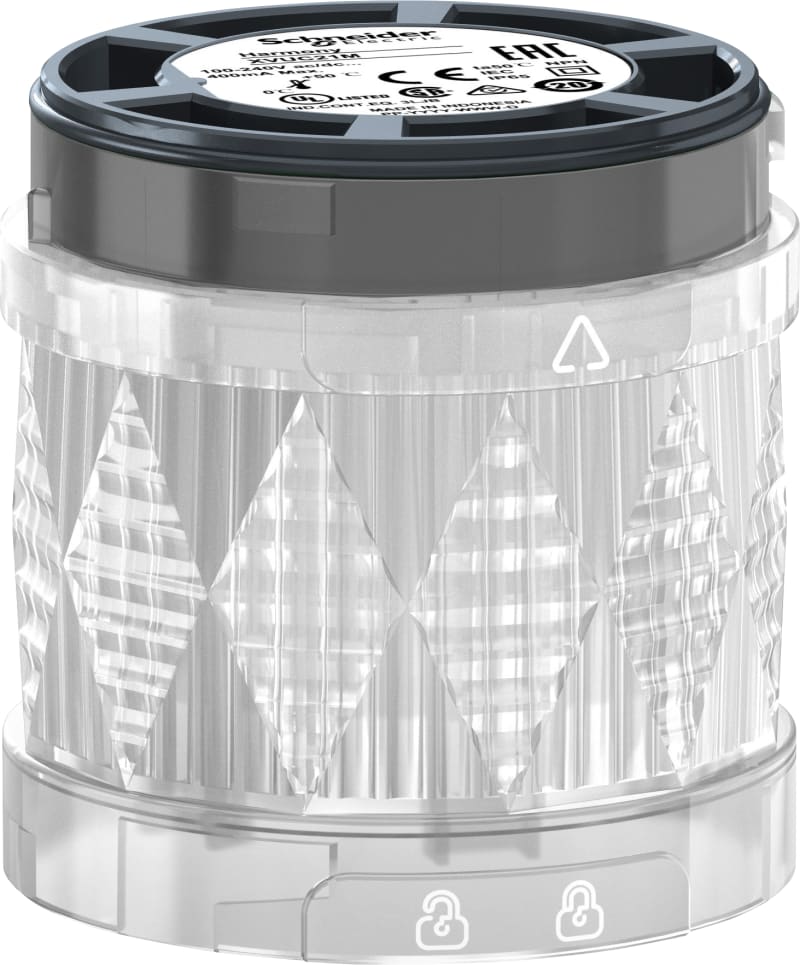

White LED-unit Blink LIGHT

Schneider Electric XVUC47 Ø60 mm light unit for XVU lyskolonne in white colour with blinkende light.

Manufacturer part number (MPN)

XVUC47 EAN / GTIN: 3606480886980 Sales unit: pcs Package quantity: 24 pcs Range of product: Harmony XVU Product or component type: Modular tower light Beacon or indicator bank unit type: LED unit Mounting diameter: 60 mm Component name: XVU Light source: LED, white Device application: Machine tools; Automotive; Packaging machine Signalling type: Blinking Assembly style: Up to 4 units with buzzer; Customer assembly, up to 5 units material: PC (polycarbonate) V-2 conforming to UL 94; PC (polycarbonate) V-0 conforming to UL 94 [Us] rated supply voltage: 24 V AC/DC Maximum power dissipation in W: 1.2 W Length: 50 mm Product weight: 0.064 kg Product certifications: CSA; CE; UL Ambient air temperature for storage: -40…70 °C IP degree of protection: IP65 Ambient air temperature for operation: -25…50 °C Vibration resistance: 2 gn Number of Units in Package 1: 1 Number of Units in Package 2: 24 Country of origin: ID Warranty (in months): 18 Outer diameter: 60 mm Function: Flash light Voltage type: AC/DC Lamp type: LED Degree of protection (IP): IP65 Operating voltage AC 50 Hz: 24 V Operating voltage AC 60 Hz: 24 V Operating voltage DC: 24 V

HS Code

8531.80

• EAN 3606480886980
• SAP 1000746434
• Code 8439143
