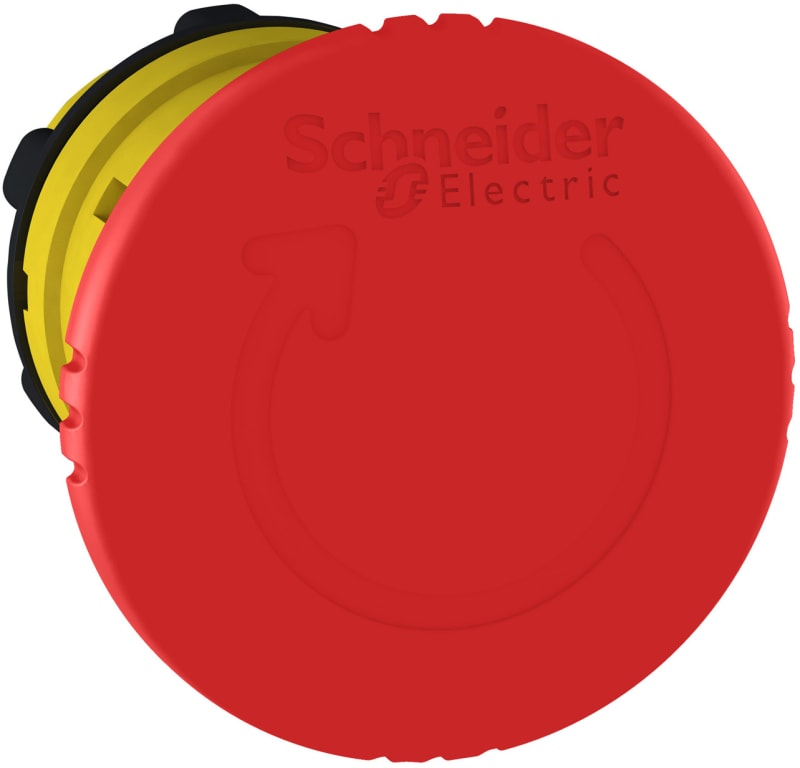

Emergency Stop Head Push/turn RED Ø40

Schneider Electric ZB5AS844 Emergency stop Push/turn Red Ø40mm.

Manufacturer part number (MPN)

ZB5AS844

EAN / GTIN

3389110906929

Sales unit

pcs

Package quantity

5 pcs

Diameter

40 mm

Range of product

Harmony XB5

Product or component type

Head for emergency stop push-button

Product destination

Emergency stop push-button

Device short name

ZB5

Bezel material

Dark grey plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Reset

Turn to release

Operator profile

Red mushroom Ø 40 mm, unmarked

Device presentation

Basic element

CAD overall width

40 mm

CAD overall height

40 mm

CAD overall depth

57 mm

Product weight

0.046 kg

Mechanical durability

300000 cycles

Station name

XALD 1 cut-out; XALK 1 cut-out

Electrical composition code

C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting; C10 for <4 contacts using single and double blocks in front mounting

Compatibility code

ZB5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; ISO 13850; IEC 60364-5-53; IEC 60204-1; GB 14048.5; JIS C8201-5-1; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-5-5; IEC 60947-1; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

100

Number of Units in Package 3

800

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red

Suitable for lighting

No

Unlocking method

Turn-release

Spring-return

No

Diameter cap

40 mm

Suitable for emergency stop

Yes

Type of button

High

Colour front ring

Black

With lighting

No

Degree of protection (IP)

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

Yes

HS Code

8538.90

• EAN 3389110906929
• SAP 1000084614
• Code 8871988
