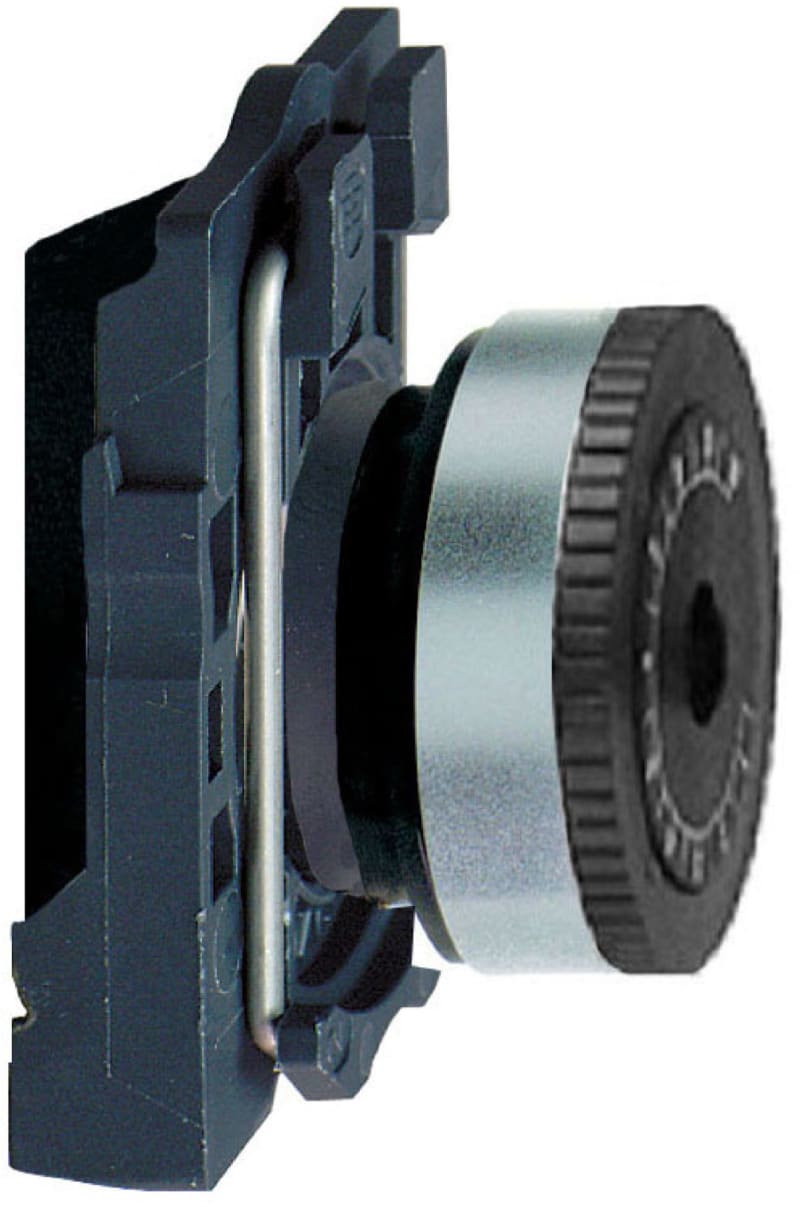

Potensimetergrep FOR (ZB5AD922)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB5AD922 Potensimetergrep For.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AD922
- EAN / GTIN
- 3389110905380
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head + mounting base for potentiometer
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Product compatibility
- For use with Ø 6.35 mm shaft
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Operator profile
- knurled knob, with (white)
- Product weight
- 0.032 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Electrical shock protection class
- Class II conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK03 conforming to IEC 50102
- Standards
- IEC 60947-5-4; IEC 60947-5-5; UL 508; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-1; CSA C22.2 No 14; JIS C8201-1
- Product certifications
- DNV; CSA; BV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 80
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Turn button
- Colour control element
- Black
- Switching function latching
- Yes
- Degree of protection (NEMA)
- 13
- Country of origin
- France
Standards & Compliance
- HS Code
- 8533.90
Cross References
- EAN 3389110905380
- SAP 1000079591
- Code 8570888
