Mushroom Pushbutton Head Red Ø30mm
Pricing
Request a quote
We reply within 24 hours
Product Description

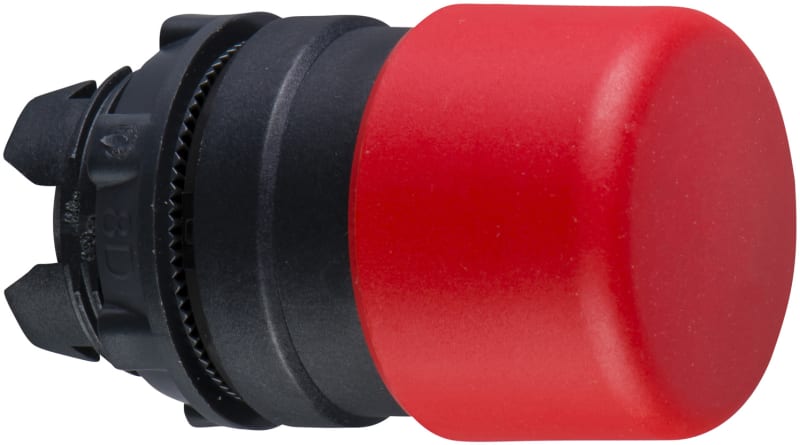

Schneider Electric ZB5AC44 mushroom pushbutton, red, Ø30mm.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AC44
- EAN / GTIN
- 3389110904918
- Sales unit
- pcs
- Package quantity
- 42 pcs
- Diameter
- 30 mm
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Head type
- Standard
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Red mushroom Ø 30 mm, unmarked
- Device presentation
- Basic element
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 52 mm
- Product weight
- 0.027 kg
- Mechanical durability
- 5000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using si
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110904918
- SAP 1000023970
- Code 8187481
Product Documentation
More from Schneider Electric
Schneider Electric
Screw with Double BAR HEAD F/ SBM
NSYAEDSBSB
Schneider Electric
Schneider Electric Harmony eXLhoist, compact, Battery table charger 5 V DC ZARC703
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=440V, 66A, 24V AC 50/60Hz coil, EverLink+springs LC1D80A3B7
Schneider Electric
Schneider Electric A9F93425 ACTI9 IC60L Miniature Circuit Breaker 4P 25 A, Curve B
Schneider Electric
Divisible current transformer HG010 100/5A
METSECT5HG010
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X500X420 IP44 NSYPLAZT754G
Schneider Electric
Cover 4P parallellkobl NSX DC
LV438337
Schneider Electric
Horisonttilk top MTZ 08/20 4P
LV848168
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB5AC44?
- ZB5AC44 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ZB5AC44.
- What is the HS code for ZB5AC44?
- The customs tariff (HS) code for ZB5AC44 is 8538.90.
- Who manufactures ZB5AC44?
- ZB5AC44 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for ZB5AC44?
- Yes — the ZB5AC44 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB5AC44?
- The minimum order quantity is 1.
- Is ZB5AC44 available?
- Yes — ZB5AC44 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
