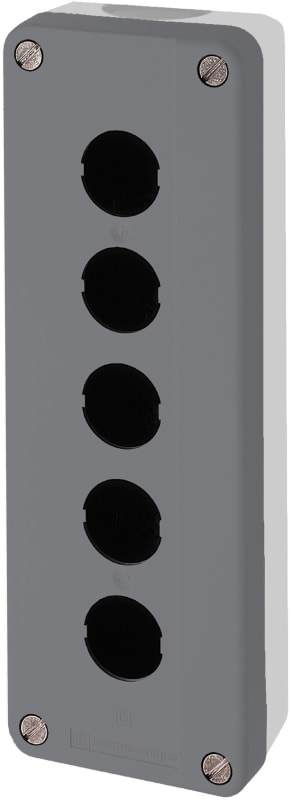

Schneider Electric XALD05 Empty enclosure, plastic, dark grey lid, for push button Ø22, 5 cut-outs

Schneider Electric XALD05 Empty enclosure, plastic, dark grey lid, for push button Ø22, 5 cut-outs is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 18 pcs; Range of product: Harmony XALD; Product or component type: Empty control station; Device short name: XALD; Product destination: For XB5 Ø 22 mm control and signalling units.

Manufacturer part number (MPN)

XALD05

EAN / GTIN

3389110114843

Sales unit

pcs

Package quantity

18 pcs

Range of product

Harmony XALD

Product or component type

Empty control station

Device short name

XALD

Product destination

For XB5 Ø 22 mm control and signalling units

Number of cut-out

5 cut-outs

Colour of base of enclosure

Light grey (RAL 7035)

Colour of cover

Dark grey (RAL 7016)

Material

Polycarbonate

Cable entry

2 knock-outs for cable entry, clamping capacity: 14 mm; 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Assembly style

For customer assembly

Number of horizontal rows

1

Number of vertical rows

5

Product weight

0.322 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mounting of block

Rear mounting; Front mounting

electrical composition code

SR2; PR1; SR1; MR1; MF2; MF1; SF1; PF2; PF1; SF2

Main group

5 cut-outs

Group of product

Standard grey

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

NEMA degree of protection

NEMA 13; NEMA 4X

IK degree of protection

IK03 conforming to IEC 62262

Standards

IEC 60947-5-1; IEC 60947-1; CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-4; UL 508; IEC 60947-5-5; JIS C8201-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

19.700 cm

Package 1 Width

7.000 cm

Package 1 Length

7.600 cm

Package 1 Weight

299.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

18

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.870 kg

Unit Type of Package 3

P06

Number of Units in Package 3

144

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

57.836 kg

Country of origin

CZ

Warranty (in months)

18

Width

68 mm

Height

196 mm

Depth

53 mm

Diameter openings

22.5 mm

Number of command positions

5

Colour housing cover

Grey

Housing material

Plastic

Construction type housing

Surface mounted housing

Degree of protection (IP)

IP66

Housing material quality

Acrylonitrile butadiene styrene (ABS)

HS Code

3926.90
