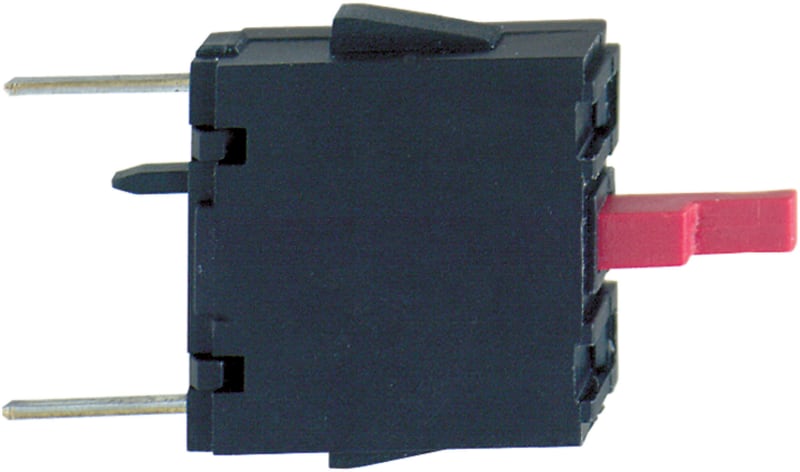

KONTAKTELEM.1NC FOR Printkort

Schneider Electric ZBE702 Contact Element 1NC For Printkort.

Manufacturer part number (MPN)

ZBE702

EAN / GTIN

3389110089523

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XB4; Harmony XB5

Product or component type

Contact block

Device short name

ZBE

Sale per indivisible quantity

10

IP degree of protection

IP20 conforming to IEC 60529

Contact operation

Slow-break

Contact block type

Single

Contacts usage

Standard contacts

Connections - terminals

Pins for printed circuit board

Product weight

0.011 kg

Contacts type and composition

1 NC

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state); 4.3 mm (total travel)

Operating force

2 N NC changing electrical state

Mechanical durability

5000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

4 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

6 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1; 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1; 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Standards

IEC 60947-5-4; JIS C8201-5-1; UL 508; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-1; JIS C8201-1

Product certifications

BV; UL; CSA; DNV; LROS (Lloyds register of shipping)

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

400

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
