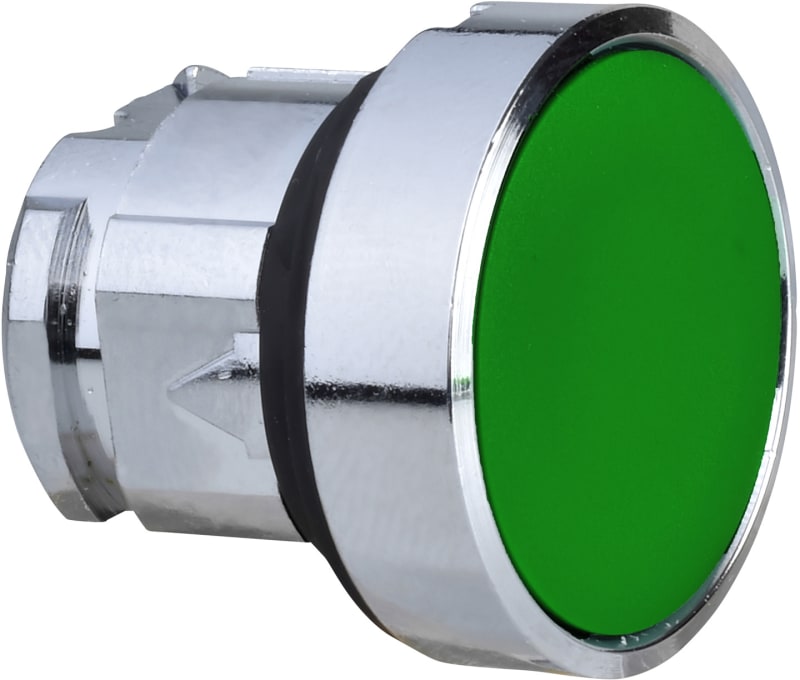

TR.BUTTON HEAD with SILIK.KAP.GREEN (ZB4BP38)

Schneider Electric ZB4BP38 Push-button With Silik.Kap.Green.

Manufacturer part number (MPN)

ZB4BP38

EAN / GTIN

3389110888034

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for non-illuminated push-button

Device short name

ZB4

Product compatibility

not compatible with legend holder

Bezel material

Chromium plated metal

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Green flush, unmarked

Operator additional information

Clear boot for insertion of protected legend within head

Cap/operator or lens colour

Green

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

37 mm

Mechanical durability

10000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C14 for <2 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

JIS C8201-5-1; UL 508; IEC 60947-1; IEC 60947-5-5; CSA C22.2 No 14; IEC 60947-5-4; IEC 60947-5-1; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.500 cm

Package 1 Width

5.400 cm

Package 1 Length

9.100 cm

Package 1 Weight

34.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

150

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.430 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Green

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3389110888034
• SAP 1000018418
• Code 8139799
