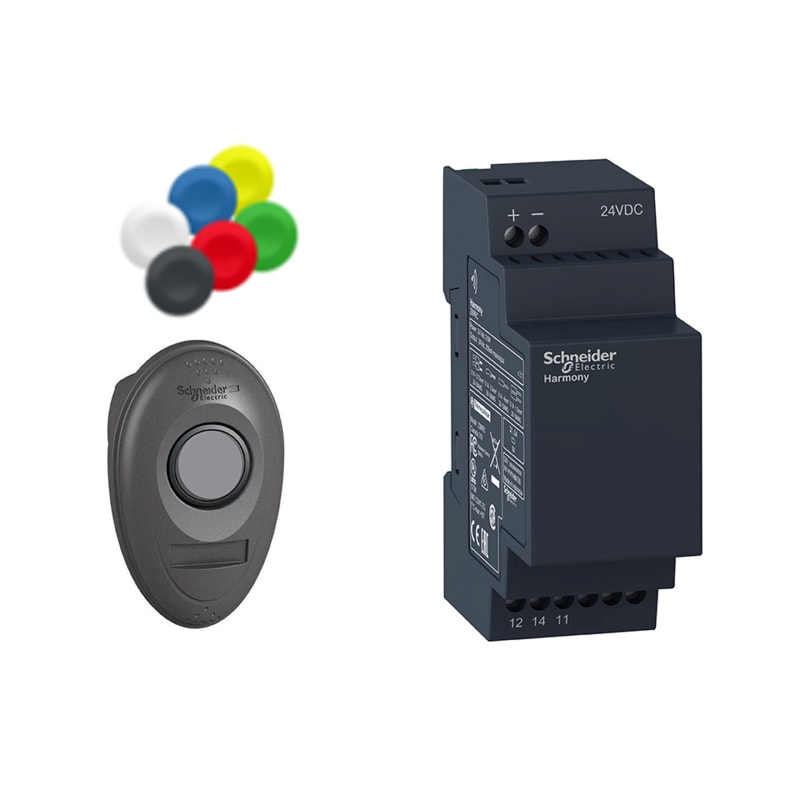

Wireless set button and receiver (XB5RMB03)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB5RMB03 — Pack with 1 wireless and batteryless plastic push button Ø22 + 1 non-configurable receiver + 1 set of caps, 24 V DC.
Technical Specifications
- Manufacturer part number (MPN)
- XB5RMB03
- EAN / GTIN
- 3606480334467
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Range of product
- Harmony XB5R
- Product or component type
- Wireless and batteryless package
- Device short name
- XB5R
- Head material
- Plastic
- frequency
- 2405 MHz for transmitter; 2405 MHz for receiver
- emission class
- 5M00G7W
- Antenna type
- Omnidirectional
- Control type
- Wireless and batteryless push-button handy box assembled on fixing collar
- Type of receiver
- Non-programmable receiver (1 relay)
- [Us] rated supply voltage
- 24 V DC
- Kit composition
- 1 transmitter; 1 set of caps; 1 receiver; 1 fixing collars; 1 diameter: 22 mm; 1 push-button head diameter: 22 mm; 1 handy box
- Communication port protocol
- Zigbee conforming to IEEE 802.15.4
- Max power consumption in W
- 1 mW
- Number of channels
- 1
- Modulation Technique
- O-QPSK
- Bandwidth
- 5 MHz
- Supply voltage
- 24 V
- Product certifications
- UL; GOST; CCC; C-Tick; CSA
- Marking
- CE
- Standards
- CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1; UL 508
- Radio agreement
- RSS; SRRC; ICASA; FCC; ANATEL; ARIB T66
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.300 cm
- Package 1 Width
- 10.300 cm
- Package 1 Length
- 10.800 cm
- Package 1 Weight
- 245.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 16
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 4.400 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Black
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Type of button
- Combination
- Colour front ring
- Black
- Degree of protection (IP)
- IP65
- Material front ring
- Plastic
- With front ring
- Yes
- Transparent
- No
- Construction type lens
- Round
- Supply voltage lamp
- 24 V
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606480334467
- SAP 1000263829
- Code 81147905
Product Documentation
