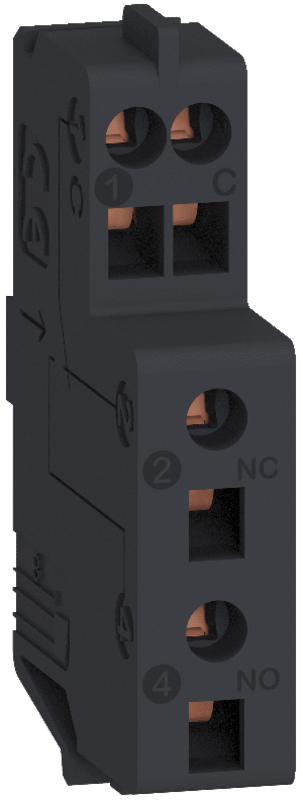

Schneider Electric auxiliary contact (spring) OF/SD - 1 NO/NC LV426950
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV426950 Auxiliary Contact OF/SD for ComPact NSXm circuit breaker.
Technical Specifications
- Manufacturer part number (MPN)
- LV426950 EAN / GTIN: 3606485444215 HS code: 8536.90 Sales unit: pcs Package quantity: 1760 pcs Product or component type: Auxiliary contact Device short name: SD; OF Device application: Breaker status monitoring Range compatibility: PowerPact PowerPact B; ComPact ComPact NSXm Signal contacts composition: 1 NO/NC Fault type: Overload; Short-circuit Local signalling: ON/OFF indication for open/close; Trip indicator for relay trip indicator Auxiliary contacts type: Standard mounting mode: Clip-on [Ith] conventional free air thermal current: 5 A Breaking capacity (A): AC-12: 5 A at 24 V AC 50/60 Hz; AC-12: 5 A at 48 V AC 50/60 Hz; AC-12: 5 A at 110...127 V AC 50/60 Hz; AC-12: 5 A at 220/240 V AC 50/60 Hz; AC-12: 5 A at 380/440 V AC 50/60 Hz; AC-12: 5 A at 660/690 V AC 50/60 Hz; AC-15: 5 A at 24 V AC 50/60 Hz; AC-15: 5 A at 48 V AC 50/60 Hz; AC-15: 4 A at 110...127 V AC 50/60 Hz; AC-15: 3 A at 220/240 V AC 50/60 Hz; AC-15: 2.5 A at 380/440 V AC 50/60 Hz; AC-15: 0.1 A at 660/690 V AC 50/60 Hz; DC-12: 5 A at 24 V DC 50/60 Hz; DC-12: 2.5 A at 48 V DC 50/60 Hz; DC-12: 0.6 A at 110 V DC 50/60 Hz; DC-12: 0.3 A at 250 V DC; DC-13: 2.5 A at 24 V DC; DC-13: 1.2 A at 48 V DC; DC-13: 0.35 A at 110 V DC; DC-13: 0.05 A at 250 V DC; DC-14: 1 A at 24 V DC; DC-14: 0.2 A at 48 V DC; DC-14: 0.05 A at 110 V DC; DC-14: 0.03 A at 250 V DC minimum load: 2 mA at 17 V DC Auxiliary connection terminal: Spring Wire stripping length: 8 mm for front connection Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 220 Country of origin: CN Warranty (in months): 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606485444215
- SAP 1200323275
- Code 82306343
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Exit sign kit, Exiway Light, rectangular, 20 m visibility OVA53214
Schneider Electric
Schneider Electric A9F06416 ACTI9 IC60H Miniature Circuit Breaker 4P 16 A, Curve B
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV3, 3P, 23-32 A, thermal magnetic, EverLink terminals GV3P32
Schneider Electric
Schneider Electric Switch disconnector, ComPacT NSX100NA, 3 poles, fixed, thermal current Ith 100A C103100S
Schneider Electric
Schneider Electric BMXP342020 processor module M340 - max 1024 discrete + 256 analog I/O - Modbus - Ethernet
Schneider Electric
Schneider Electric iCT 16A 1NO 1NC 24V 50Hz contactor A9C22115
Schneider Electric
Screw Clip TCS-X-C3 Secor 22-26 White
2191070
Schneider Electric
Joint Sleeve Steel 25mm
3015173
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV426950?
- LV426950 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV426950.
- What is the HS code for LV426950?
- The customs tariff (HS) code for LV426950 is 8536.90.
- Who manufactures LV426950?
- LV426950 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV426950?
- Yes — the LV426950 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV426950?
- The minimum order quantity is 1.
- Is LV426950 available?
- Yes — LV426950 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
