DOUBLE PUSH BUTTON for LIGHT Black KN UMRK (ZB5AW7A3740)

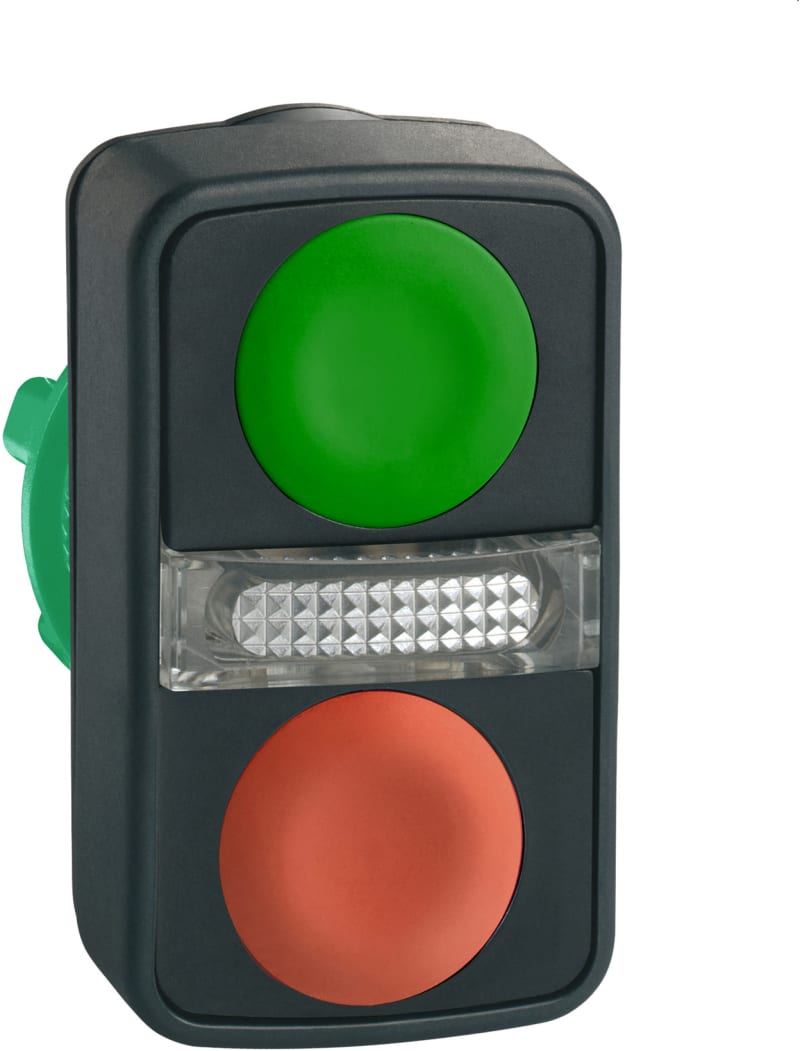

Schneider Electric ZB5AW7A3740 Double push-button head in plastic for LED with a green and red push surface.

Manufacturer part number (MPN)

ZB5AW7A3740

EAN / GTIN

3389119043359

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated double-headed push-button

Product compatibility

Integral LED

Device short name

ZB5

Bezel material

Dark grey plastic

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

2 flush push-buttons - 1 central pilot light

Operators description

Green unmarked - red unmarked

CAD overall width

30 mm

CAD overall height

50 mm

CAD overall depth

30 mm

Product weight

0.023 kg

Mechanical durability

1000000 cycles

Station name

XALD 1 cut-out

Device presentation

Basic sub-assemblies

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-5-4; UL 508; JIS C8201-5-1; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.3 cm

Package 1 Width

5.3 cm

Package 1 Length

5.8 cm

Package 1 Weight

25.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

200

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

5.442 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

Yes

Number of command positions

2

Spring-return

Yes

Labelled

No

Type of button

Flat

Colour front ring

Black

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Rectangular

Switching function latching

No

HS Code

8538.90

• EAN 3389119043359
• SAP 1000260521
• Code 8175603
