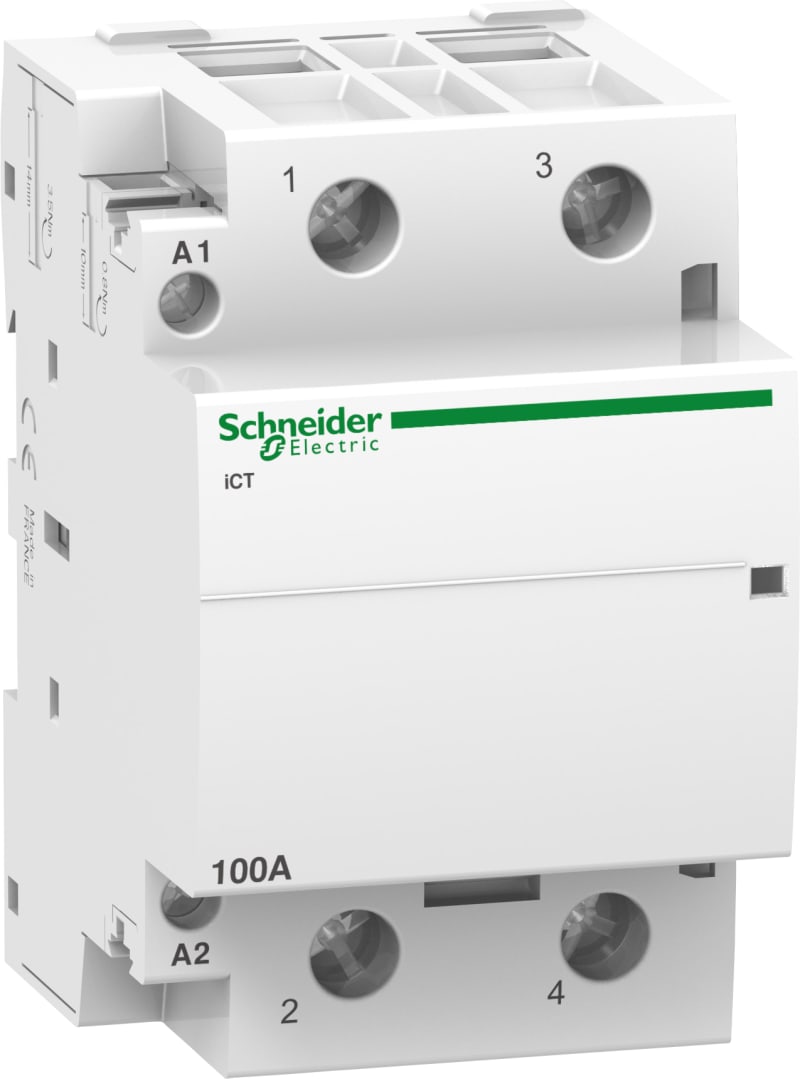

Schneider Electric iCT 100A 2NO 220...240V 50Hz contactor A9C20882

Schneider Electric A9C20882 Contactor iCT 100A 2NO 230VAC.

Manufacturer part number (MPN)

A9C20882

EAN / GTIN

3606480375194

HS code

8536.90

Sales unit

pcs

Package quantity

4 pcs

Voltage

230 V AC

Contact configuration

2 NO

range of product

Acti9

Product name

Acti9 iCT

Product or component type

Contactor

Device short name

iCT

Device application

Heating-low inductive load

Poles

2P

[Ie] rated operational current

100 A AC-7A

Pole contact composition

2 NO

Network type

AC

Utilisation category

AC-1 conforming to EN 60947-4-1; AC-7A conforming to EN 61095; AC-7A conforming to IEC 61095; AC-7A conforming to UTE C 61-481; AC-1 conforming to IEC 60947-4-1

Control type

Remote control

[Uc] control circuit voltage

220...240 V AC 50 Hz

Network frequency

50 Hz

[Ue] rated operational voltage

250 V AC 50 Hz

Maximum power

AC-7A: 2.1 W at 250 V AC 50 Hz

[Ui] rated insulation voltage

500 V AC 50 Hz

[Uimp] rated impulse withstand voltage

4 kV

Control signal type

Maintained

Switching frequency

100 switching operations/day

Local signalling

Action indicator

Hold-in power consumption in VA

6.5 VA

Inrush power in VA

53 VA

mounting mode

Clip-on

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

6

Height

85 mm

Width

54 mm

Depth

60 mm

Colour

White

Electrical durability

30000 cycles EN 61095 250 V 16 A AC 50 Hz AC-7A; 30000 cycles UTE C 61-481 250 V 6 A AC 50 Hz AC-7A; 30000 cycles IEC 61095 250 V AC 50 Hz AC-7A

Connections - terminals

Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid; Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid; Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible; Power circuit: tunnel type terminals1 cable(s) 6…35 mm² solid or flexible

Tightening torque

Power circuit: 3.5 N.m; Control circuit: 0.8 N.m A1 / A2

Product compatibility

IACTs; IACTp; IATEt; IACTc

Compatibility code

ICT

Market segment

Small commercial; Residential

Standards

UTE C 61-481; IEC 61095; EN 61095

Noise level

30 dB

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

2

Tropicalisation

2 conforming to EN 60947-4-1

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-5…60 °C

Ambient air temperature for storage

-40…70 °C

Warranty (in months)

18

HS Code

8536.90
