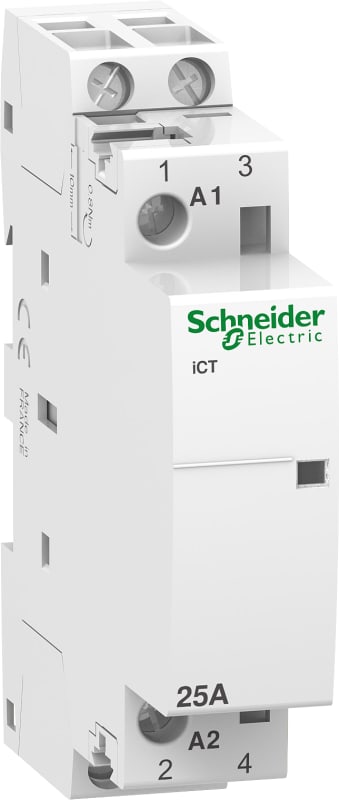

Schneider Electric iCT 25A 2NO 220...240V 60Hz contactor A9C20632

Schneider Electric A9C20632 Contactor iCT 25A 2NO 230V.

Manufacturer part number (MPN)

A9C20632

EAN / GTIN

3606480375033

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Voltage

230 V

Rated current

25 A

Contact configuration

2 NO

range of product

Acti9

Product name

Acti9 iCT

Product or component type

Contactor

Device short name

iCT

Device application

Motor-heating-lighting

Poles

2P

[Ie] rated operational current

25 A AC-7A; 8.5 A AC-7B

Pole contact composition

2 NO

Network type

AC

Control type

Remote control

[Uc] control circuit voltage

220...240 V AC 60 Hz

Network frequency

60 Hz

[Ue] rated operational voltage

250 V AC 60 Hz

Maximum power

0.9 W at 250 V AC

[Ui] rated insulation voltage

500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

4 kV

Control signal type

Maintained

Switching frequency

100 switching operations/day

Local signalling

Action indicator

Hold-in power consumption in VA

2.7 VA

Inrush power in VA

9.2 VA

mounting mode

Clip-on

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

2

Height

81 mm

Width

18 mm

Depth

68.5 mm

Colour

White

Mechanical durability

1000000 cycles

Electrical durability

100000 cycles IEC/EN 61095 25 A 60 Hz AC-7A; 30000 cycles IEC/EN 61095 8.5 A 60 Hz AC-7B; 30000 cycles IEC/EN 61095 60 Hz AC-7C; 100000 cycles EN/IEC 60947-4-1 60 Hz AC-1; 30000 cycles EN/IEC 60947-4-1 60 Hz AC-3; 30000 cycles EN/IEC 60947-4-1 60 Hz AC-5a; 30000 cycles EN/IEC 60947-4-1 60 Hz AC-5b

Connections - terminals

Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid; Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible; Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid; Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid; Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible

Tightening torque

Control circuit: 0.8 N.m; Power circuit: 0.8 N.m

Product compatibility

IACTp; IATEt; IACTc; IACTs

Compatibility code

ICT

Market segment

Small commercial; Residential

Standards

IEC/EN 61095

Noise level

30 dB

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

2

Tropicalisation

2 conforming to EN 60947-4-1; 2 conforming to EN 61095; 2 conforming to IEC 1095

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-5…60 °C

Ambient air temperature for storage

-40…70 °C

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90
