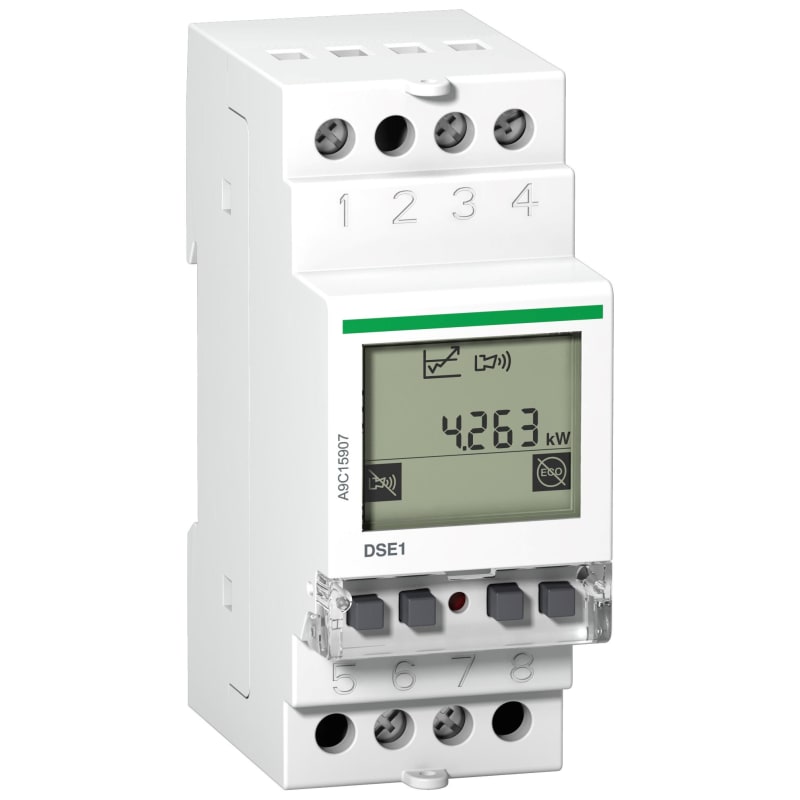

Schneider Electric DSE1 - load-shedder - 1 channel A9C15907

Schneider Electric A9C15907 DSE1 1 CHANNEL MAX.,VOKTER.

Manufacturer part number (MPN)

A9C15907

EAN / GTIN

3606480495946

Sales unit

pcs

Package quantity

36 pcs

range of product

Acti9

Product or component type

Load-shedder

Device short name

DSE1

Number of channels

1

Control and monitoring type

Cascade

Poles description

1P

Setting

3.5...32 A +/- 1 %

Power consumption in VA

3.5 VA

[Ue] rated operational voltage

230 V AC +/- 10 % at 50/60 Hz

Rated current

32 A for priority circuit; > 16 A relaying by contactor for non-priority circuit; < 16 A for non-priority circuit

Local signalling

Load-shedding indication: 1 LED (red); Load-shedding indication: buzzer

Display type

LCD screen

Maximum value measured

9.999 kW

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

4

Connections - terminals

Screw terminal6 mm²

IP degree of protection

IP40; IP20

Height

87 mm

Width

36 mm

Depth

60 mm

Product weight

0.13 kg

Colour

White (RAL 9003)

Ambient air temperature for operation

-5…50 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

36

Warranty (in months)

18

Rated voltage

230 V

Rated current Iu

16–32 A

Just-operate current

16–32 A

Number of contacts as change-over contact

1

Voltage type

AC

Mounting method

DIN rail

Width in number of modular spacings

2

Built-in depth

60 mm

Degree of protection (IP)

IP20

Country of origin

Italy

HS Code

8536.49

• EAN 3606480495946
• SAP 1200503559
• Code 82636068
