Coil D40A-D65A 240V 50/60Hz
Pricing
Request a quote
We reply within 24 hours
Product Description

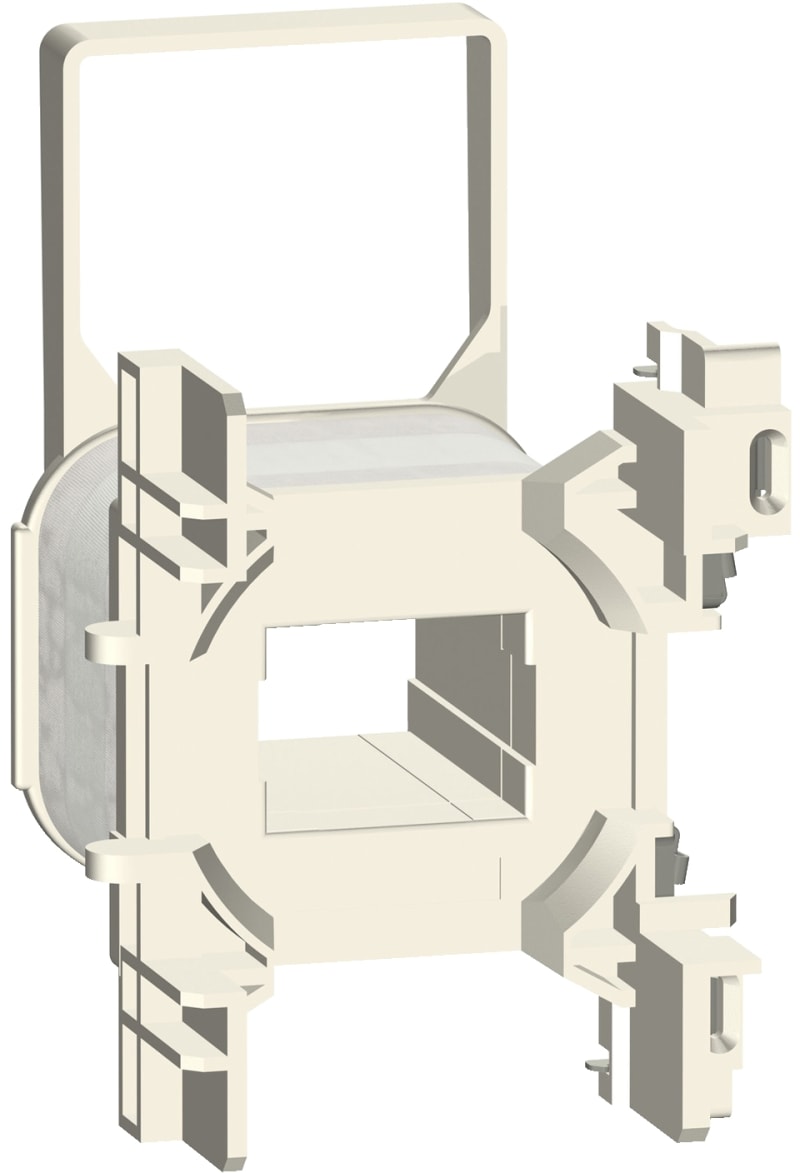

Schneider Electric LXD3U7 Coil D40A-D65A 240V 50/60Hz.
Technical Specifications
- Manufacturer part number (MPN)
- LXD3U7
- EAN / GTIN
- 3389119410434
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Voltage
- 240 V
- Frequency
- 50/60 Hz
- Range
- TeSys
- Product or component type
- Contactor coil
- Device short name
- LXD3
- Control circuit type
- AC at 50/60 Hz
- [Uc] control circuit voltage
- 240 V AC 50/60 Hz
- Average resistance
- 202 Ohm at 20 °C
- Inductance of closed circuit
- 11.9 H
- Product compatibility
- LC1D40A...D65A; LC1DT80A; LC1DT60A
- Mechanical durability
- 6 Mcycles
- Maximum operating rate
- 3600 cyc/h 60 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
- Inrush power in VA
- 160 VA 60 Hz cos phi 0.75 (at 20 °C); 160 VA 50 Hz cos phi 0.75 (at 20 °C)
- Hold-in power consumption in VA
- 15 VA 60 Hz cos phi 0.3 (at 20 °C); 15 VA 50 Hz cos phi 0.3 (at 20 °C)
- Heat dissipation
- 4…5 W at 50/60 Hz
- Ambient air temperature for operation
- -5…60 °C
- Product weight
- 0.07 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 240 V
- Rated control supply voltage AC 60 Hz
- 240 V
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8504.50
Cross References
- EAN 3389119410434
- SAP 1000081176
- Code 8572707
Product Documentation
