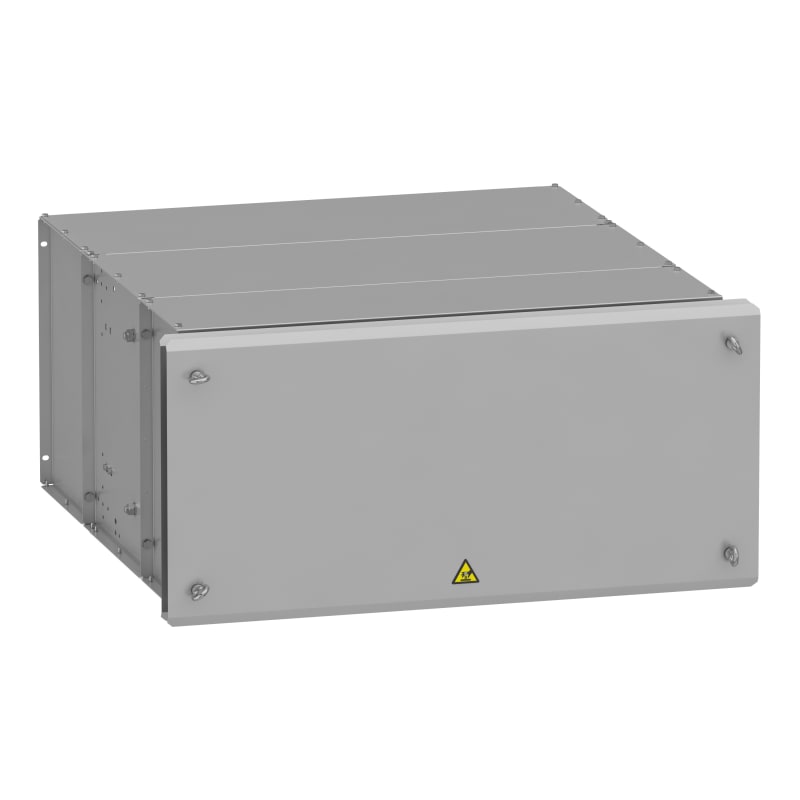

Schneider Electric braking resistor - 8 ohms - 25 kW - IP23 VW3A7755

Schneider Electric VW3A7755 Braking resistor 8 ohms 25kW IP23.

Manufacturer part number (MPN)

VW3A7755

EAN / GTIN

3606480802478

Sales unit

pcs

Power

25 kW

Resistance

8 Ω

Range compatibility

Altivar Process ATV900; Altivar Machine ATV340

Product or component type

Braking resistor

Ohmic value

8 Ohm

[Ue] rated operational voltage

24 V DC; 250 V AC

Product compatibility

Variable speed drive ATV930 wall mount 55 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 15 kW 200...240 V severe cycle; Variable speed drive ATV950 wall mount 55 kW 380...480 V severe cycle; Variable speed drive ATV340 45 kW 380...480 V severe cycle; Variable speed drive ATV930 75 kW 500...690 V severe cycle; Variable speed drive ATV930 90 kW 500...690 V severe cycle; Variable speed drive ATV930 100 hp 600 V severe cycle

Duty cycle

Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle

Average power available

25 kW at 50 °C

Electrical connection

terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch; M12 bar wire for drive

Protection type

Thermal protection via drive or temperature control switch at 120 °C

Width

540 mm

Height

1035 mm

Depth

1060 mm

Product weight

87.5 kg

IP degree of protection

IP23

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

0…50 °C

Number of Units in Package 1

1

Country of origin

DE

Warranty (in months)

18

Type of accessory/spare part

Breaking resistance

Accessory

Yes

Spare part

No

HS Code

8533.29
