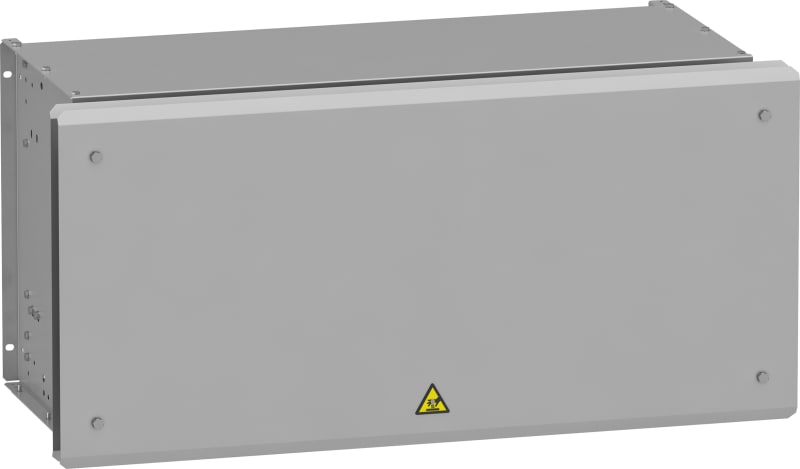

Schneider Electric braking resistor - 2.5 ohms - 11 kW - IP23 VW3A7747
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7747 Braking resistor 2,5 ohms 11kW IP23.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7747
- EAN / GTIN
- 3606480802409
- Sales unit
- pcs
- Power
- 11 kW
- Resistance
- 5 Ω
- Range compatibility
- Altivar Process ATV900
- Product or component type
- Braking resistor
- Ohmic value
- 2.5 Ohm
- [Ue] rated operational voltage
- 24 V DC; 250 V AC
- Product compatibility
- Variable speed drive ATV930 wall mount 110 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 132 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 160 kW 380...480 V medium cycle
- Duty cycle
- Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Average power available
- 11 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch; M12 bar wire for drive
- Protection type
- Thermal protection via drive or temperature control switch at 120 °C
- Width
- 540 mm
- Height
- 485 mm
- Depth
- 1060 mm
- Product weight
- 48.5 kg
- IP degree of protection
- IP23
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3606480802409
- SAP 1200020046
- Code 81392426
