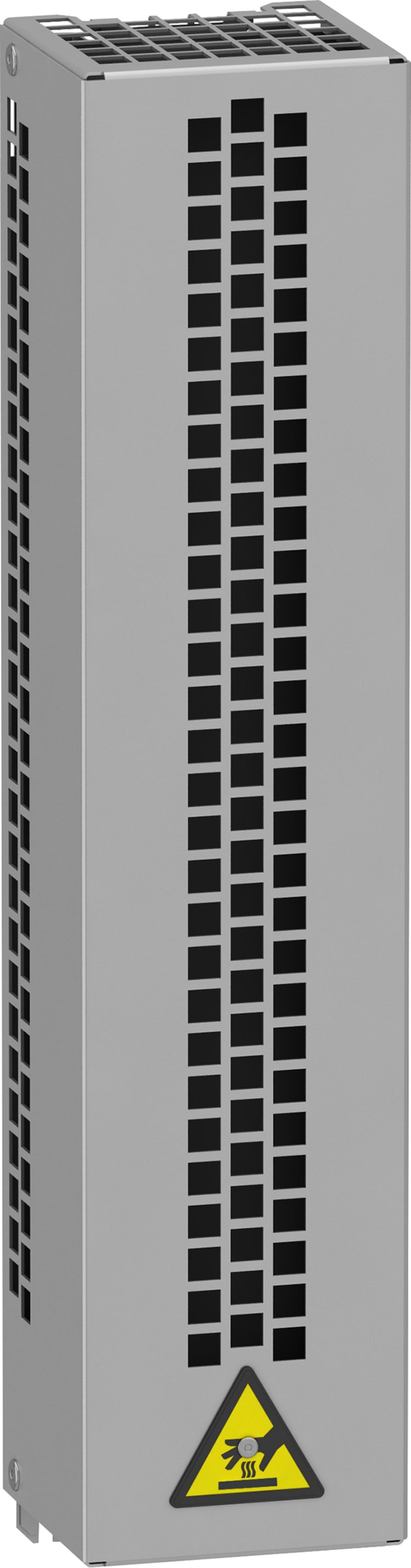

Schneider Electric braking resistor - 100 ohms - 0.26 kW - IP20 VW3A7740
Part numberVW3A7740EAN / GTIN3606480802331HS code8533.29
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7740 Braking resistor 100 ohms 0,26kW IP20.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7740
- EAN / GTIN
- 3606480802331
- Sales unit
- pcs
- Power
- 0.26 kW
- Resistance
- 100 Ω
- Range compatibility
- Altivar Process ATV900; Altivar Machine ATV340
- Product or component type
- Braking resistor
- Ohmic value
- 100 Ohm
- Product compatibility
- Variable speed drive ATV930 wall mount 2.2 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 3 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 4 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 2.2 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 3 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 4 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 0.75 kW 200...240 V severe cycle; Variable speed drive ATV340 1.5 kW 380...480 V medium cycle; Variable speed drive ATV340 2.2 kW 380...480 V medium cycle; Variable speed drive ATV340 3 kW 380...480 V medium cycle; Variable speed drive ATV930 4 kW 500...690 V medium cycle; Variable speed drive ATV930 5.5 kW 500...690 V medium cycle; Variable speed drive ATV930 5 hp 600 V medium cycle; Variable speed drive ATV930 7.5 hp 600 V medium cycle
- Duty cycle
- Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
- Average power available
- 0.26 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 10 mm² / 8 AWG for drive
- Protection type
- Thermal protection via drive
- Width
- 105 mm
- Height
- 465 mm
- Depth
- 100 mm
- Product weight
- 2.5 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 21
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
