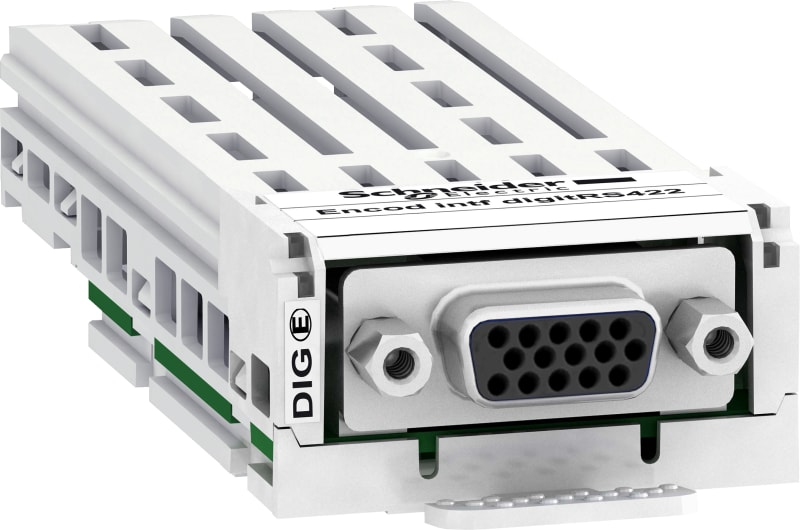

Schneider Electric digital encoder interface module VW3A3420

Schneider Electric VW3A3420 Digital encoder module 5V/12V.

Manufacturer part number (MPN)

VW3A3420

EAN / GTIN

3606485441252

Sales unit

pcs

Package quantity

16 pcs

Range of product

Altivar

Product or component type

Digital encoder interface module

Range compatibility

Altivar Process ATV900; Altivar Process Modular; Altivar Machine ATV340

Communication port protocol

RS422

Encoder type

EnDat 2.2; A/B/I incremental XCC1 type R; A/B/I incremental XCC1 type X; SSI absolute encoder XCC2 type SG; SSI absolute encoder XCC3 type SB

[Us] rated supply voltage

5 V DC (voltage limits: 4.75…5.25 V); 12 V DC (voltage limits: 11.4…12.6 V); 24 V DC (voltage limits: 22.8…25.2 V)

Maximum supply current

0.25 A at 5 V DC; 0.1 A at 12 V DC; 0.1 A at 24 V DC

Protection type

Short-circuit protection; Overload protection

Maximum cable distance between devices

100 m (A/B/I); 50 m (SSI); 100 m (SSI)at 300 kHz; 50 m (EnDat 2.2); 100 m (EnDat 2.2)with propagation delay compensation

Maximum operating frequency

1000 kHz

Input signal

Data+, Data- (EnDat 2.2); Data+, Data- (SSI); Temp+, Temp-; A+,A-/B+,B-/I+,I- (A/B/I); TTL

Input impedance

121 Ohm

Output signal

Clock+, Clock- (SSI); Data+, Data-, Clock+, Clock- (EnDat 2.2)

Connector type

1 female high density SUB-D 15

Product weight

0.15 kg

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

ID

Warranty (in months)

18

Type of accessory/spare part

Encoder input module

Accessory

Yes

Spare part

No

HS Code

8517.62

• EAN 3606485441252
• SAP 1200020029
• Code 81392418
