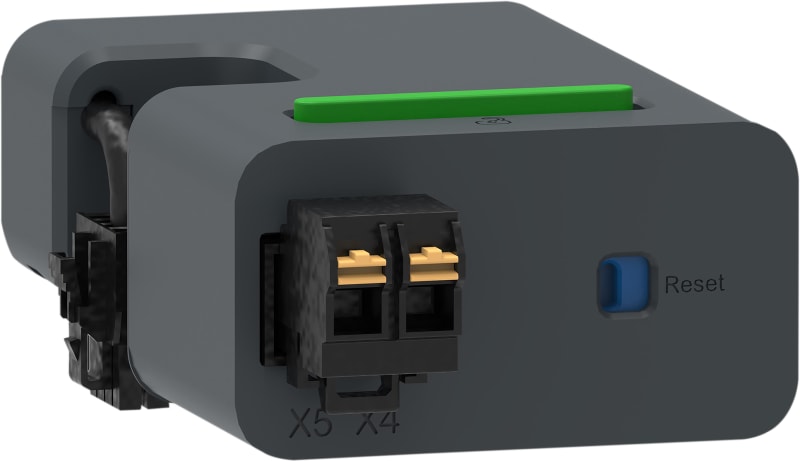

Ekst.slitasjediagnosemodul- NO (LA9GRD10)

Schneider Electric LA9GRD10 External slitasjediagnosemodul (NO) for TeSys Giga-contactor LC1G.

Manufacturer part number (MPN)

LA9GRD10

EAN / GTIN

3606481047922

HS code

8536.90

Sales unit

pcs

Package quantity

32 pcs

Range

TeSys

Device short name

LA9G

Product or component type

Function module

Mounting location

Top

main function available

Remote alarm

Auxiliary contact composition

1 NO

[Ith] conventional free air thermal current

5 A

Connection pitch

5.08 mm

Height

91.5 mm

Width

30 mm

Depth

50 mm

Product weight

0.1 kg

Quantity per set

Set of 1

Pollution degree

3 conforming to IEC 60947-1

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; JIS C8201-4-1; JIS C8201-5-1; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-1; UL 60335-2-40:Annex JJ

Product certifications

CB Scheme; CCC; CULus; UKCA; ATEX; EU-RO-MR by DNV-GL; EAC

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-60…80 °C

Operating altitude

3000 m without derating; 5000 m with derating factor

IP degree of protection

IP20 conforming to IEC 60529

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481047922
• SAP 1200587656
• Code 82974806
