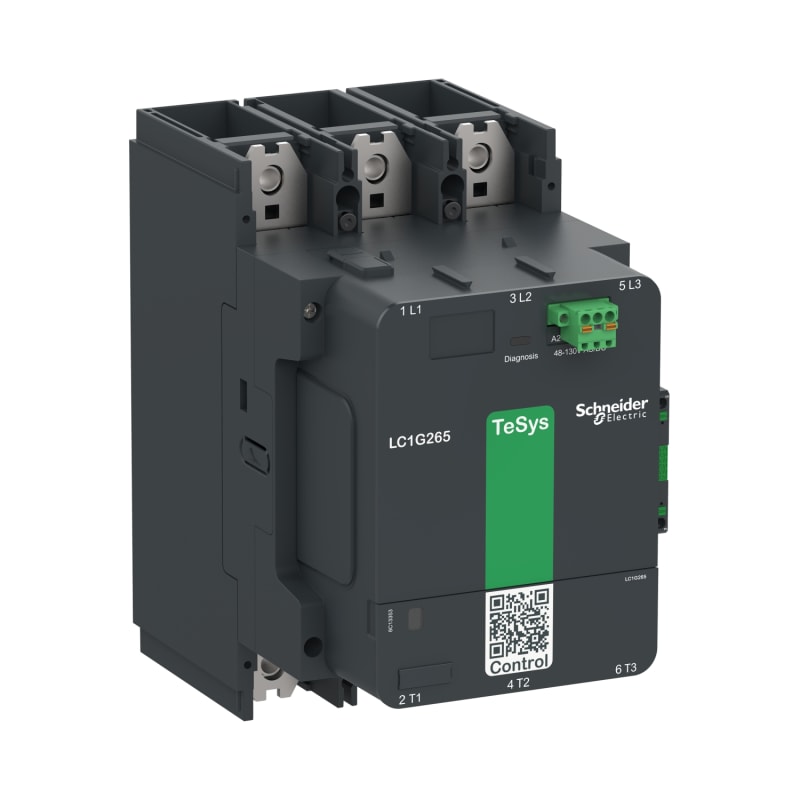

Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 330A, standard version, 48…130V wide band AC/DC coil LC1G330EHEN

Schneider Electric LC1G330EHEN Contactor TeSys LC1G 330A 440V 3P AC3 standard 48-130V AC-DC coil.

Manufacturer part number (MPN)

LC1G330EHEN

EAN / GTIN

3606481921871

HS code

8536.90

Sales unit

pcs

Number of poles

3P

Range

TeSys

Range of product

TeSys Giga

Product or component type

Contactor

Device short name

LC1G

Contactor application

Power switching; Motor control

Utilisation category

AC-1; AC-3; AC-3e; AC-4; AC-5a; AC-5b; AC-6a; AC-6b; AC-8b; AC-8a; DC-1; DC-3; DC-5

Poles description

3P

[Ue] rated operational voltage

<= 1000 V AC 50/60 Hz; <= 460 V DC

[Ie] rated operational current

440 A (at <40 °C) at <= 1000 V AC-1; 330 A (at <60 °C) at <= 440 V AC-3

[Uc] control circuit voltage

48...130 V AC 50/60 Hz; 48...130 V DC

Control circuit voltage limits

Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C); Drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

[Uimp] rated impulse withstand voltage

8 kV

Overvoltage category

III

[Ith] conventional free air thermal current

440 A (at 40 °C)

Rated breaking capacity

2940 A at 440 V

[Icw] rated short-time withstand current

2.65 kA - 10 s; 1.8 kA - 30 s; 1.3 kA - 1 min; 0.9 kA - 3 min; 0.75 kA - 10 min

Associated fuse rating

400 A aM at <= 440 V for motor; 250 A aM at <= 690 V for motor; 500 A gG at <= 690 V; 600 A UL Type L at <= 600 V

Average impedance

0.000144 Ohm

[Ui] rated insulation voltage

1000 V

Power dissipation per pole

30 W AC-1 - Ith 440 A; 16 W AC-3 - Ith 330 A

Compatibility code

LC1G

Pole contact composition

3 NO

Auxiliary contact composition

1 NO + 1 NC

Motor power kW

90 kW at 230 V AC 50/60 Hz (AC-3e); 160 kW at 400 V AC 50/60 Hz (AC-3e); 160 kW at 415 V AC 50/60 Hz (AC-3e); 185 kW at 440 V AC 50/60 Hz (AC-3e); 200 kW at 500 V AC 50/60 Hz (AC-3e); 220 kW at 690 V AC 50/60 Hz (AC-3e); 185 kW at 1000 V AC 50/60 Hz (AC-3e); 90 kW at 230 V AC 50/60 Hz (AC-3); 160 kW at 400 V AC 50/60 Hz (AC-3); 160 kW at 415 V AC 50/60 Hz (AC-3); 200 kW at 440 V AC 50/60 Hz (AC-3); 200 kW at 500 V AC 50/60 Hz (AC-3); 220 kW at 690 V AC 50/60 Hz (AC-3); 185 kW at 1000 V AC 50/60 Hz (AC-3); 90 kW at 230 V AC 50/60 Hz (AC-4); 160 kW at 400 V AC 50/60 Hz (AC-4); 160 kW at 415 V AC 50/60 Hz (AC-4); 185 kW at 440 V AC 50/60 Hz (AC-4); 200 kW at 500 V AC 50/60 Hz (AC-4); 220 kW at 690 V AC 50/60 Hz (AC-4); 185 kW at 1000 V AC 50/60 Hz (AC-4)

Motor power hp

100 hp at 200/208 V 60 Hz; 125 hp at 230/240 V 60 Hz; 250 hp at 460/480 V 60 Hz; 300 hp at 575/600 V 60 Hz

Irms rated making capacity

3830 A at 440 V

Coil technology

Built-in bidirectional peak limiting

Safety reliability level

B10d = 400000 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 3000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Mechanical durability

8 Mcycles

inrush power in VA (50/60 Hz, AC)

780 VA

inrush power in W (DC)

695 W

hold-in power consumption in VA (50/60 Hz, AC)

17.6 VA

hold-in power consumption in W (DC)

7.8 W

Operating time

40...70 ms closing; 15...50 ms opening

Maximum operating rate

600 cyc/h AC-3; 600 cyc/h AC-3e; 300 cyc/h AC-1; 150 cyc/h AC-4

Connections - terminals

Power circuit: bar 2 - busbar cross section: 32 x 10 mm; Power circuit: lugs-ring terminals 1 185 mm²; Power circuit: bolted connection; Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end; Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: push-in 2 0.5…1.0 mm² with cable end; Control circuit: push-in 0.75…2.5 mm² - cable stiffness: solid stranded without cable end; Control circuit: push-in 0.75…2.5 mm² - cable stiffness: flexible with cable end

Connection pitch

45 mm

Mounting support

Plate

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; JIS C8201-4-1; JIS C8201-5-1; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-1; UL 60335-2-40:Annex JJ

Product certifications

CB Scheme; CCC; cULus; EAC; CE; UKCA; EU-RO-MR by DNV-GL

Tightening torque

35 N.m

Height

225 mm

Width

140 mm

Depth

226 mm

Product weight

7 kg

IP degree of protection

IP2X front face with shrouds conforming to IEC 60529; IP2X front face with shrouds conforming to VDE 0106

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-60…80 °C

Mechanical robustness

Vibrations 5…300 Hz 2 gn contactor open; Vibrations 5…300 Hz 4 gn contactor closed; Shocks 10 gn 11 ms contactor open; Shocks 15 gn 11 ms contactor closed

Colour

Dark grey

Protective treatment

TH

Permissible ambient air temperature around the device

-40…70 °C at Uc

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481921871
• SAP 1200587730
• Code 82974767
