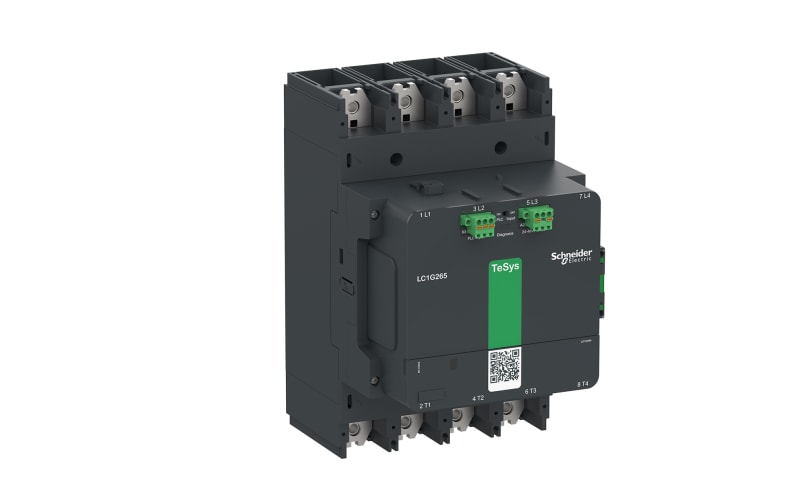

Schneider Electric High power contactor, TeSys Giga, 4 pole (4NO), AC-1 <=440V 385A, advanced version, 48…130V wide band AC/DC coil LC1G2654EHEA

Schneider Electric LC1G2654EHEA Contactor TeSys LC1G 265A 440V 4P AC3 advanced 48-130V AC-DC coil.

Manufacturer part number (MPN)

LC1G2654EHEA

EAN / GTIN

3606481922663

HS code

8536.90

Sales unit

pcs

Package quantity

4 pcs

Number of poles

4P

Range

TeSys

Range of product

TeSys Giga

Product or component type

Contactor

Device short name

LC1G

Contactor application

Power switching

Utilisation category

AC-3; AC-3e; AC-1; AC-5a; AC-5b; AC-6a; AC-6b; DC-1; DC-3; DC-5

Poles description

4P

[Ue] rated operational voltage

<= 1000 V AC 50/60 Hz; <= 460 V DC

[Ie] rated operational current

265 A (at <60 °C) at <= 440 V AC-3; 385 A (at <40 °C) at <= 1000 V AC-1

[Uc] control circuit voltage

48...130 V AC 50/60 Hz; 48...130 V DC

Control circuit voltage limits

Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C); Drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

[Uimp] rated impulse withstand voltage

8 kV

Overvoltage category

III

[Ith] conventional free air thermal current

385 A (at 40 °C)

Rated breaking capacity

2380 A at 440 V

[Icw] rated short-time withstand current

2.2 kA - 10 s; 1.23 kA - 30 s; 0.95 kA - 1 min; 0.62 kA - 3 min; 0.48 kA - 10 min

Associated fuse rating

315 A aM at <= 440 V for motor; 250 A aM at <= 690 V for motor; 400 A gG at <= 690 V; 450 A UL Type J at <= 600 V

Average impedance

0.000144 Ohm

[Ui] rated insulation voltage

1000 V

Power dissipation per pole

20 W AC-1 - Ith 385 A; 11 W AC-3 - Ith 265 A

Compatibility code

LC1G

Pole contact composition

4 NO

Auxiliary contact composition

1 NO + 1 NC

Motor power hp

75 hp at 200/208 V 60 Hz; 100 hp at 230/240 V 60 Hz; 200 hp at 460/480 V 60 Hz; 200 hp at 575/600 V 60 Hz

Irms rated making capacity

3320 A at 440 V

Coil technology

Built-in bidirectional peak limiting

Safety reliability level

B10d = 400000 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 3000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Mechanical durability

8 Mcycles

inrush power in VA (50/60 Hz, AC)

430 VA

inrush power in W (DC)

360 W

hold-in power consumption in VA (50/60 Hz, AC)

11.7 VA

hold-in power consumption in W (DC)

9.0 W

Operating time

40...70 ms closing; 15...50 ms opening

Maximum operating rate

600 cyc/h AC-3; 600 cyc/h AC-3e; 300 cyc/h AC-1

Connections - terminals

Power circuit: bar 2 - busbar cross section: 32 x 10 mm; Power circuit: lugs-ring terminals 1 185 mm²; Power circuit: bolted connection; Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end; Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: push-in 2 0.5…1.0 mm² with cable end; Control circuit: push-in 0.75…2.5 mm² - cable stiffness: solid stranded without cable end; Control circuit: push-in 0.75…2.5 mm² - cable stiffness: flexible with cable end

Connection pitch

45 mm

Mounting support

Plate

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; JIS C8201-4-1; JIS C8201-5-1; UL 60335-1; UL 60335-2-40:Annex JJ

Product certifications

CB Scheme; CCC; cULus; EAC; CE; UKCA; EU-RO-MR by DNV-GL

Tightening torque

35 N.m

Height

290 mm

Width

185 mm

Depth

226 mm

Product weight

8.9 kg

IP degree of protection

IP2X front face with shrouds conforming to IEC 60529; IP2X front face with shrouds conforming to VDE 0106

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-60…80 °C

Mechanical robustness

Vibrations 5…300 Hz 2 gn contactor open; Vibrations 5…300 Hz 4 gn contactor closed; Shocks 10 gn 11 ms contactor open; Shocks 15 gn 11 ms contactor closed

Colour

Dark grey

Protective treatment

TH

Permissible ambient air temperature around the device

-40…70 °C at Uc

Warranty (in months)

18

HS Code

8536.90
