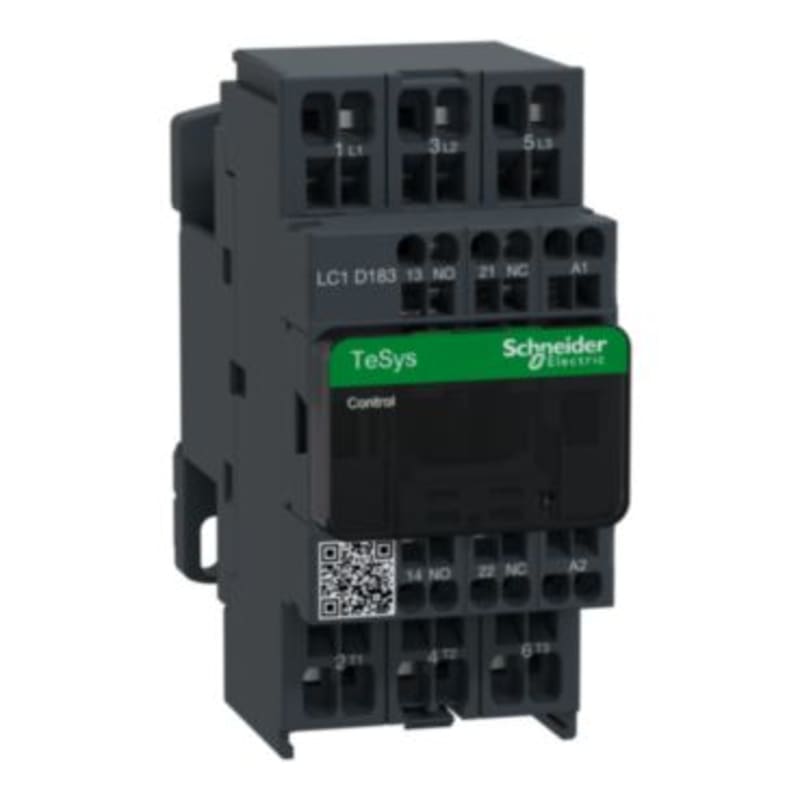

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 18A, 24V AC 50/60Hz coil, spring terminals LC1D183B7

Schneider Electric LC1D183B7 — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. LC1D: 3-pole contactors with AC-coil for motor drive and not-inductive load.

Manufacturer part number (MPN)

LC1D183B7 EAN / GTIN: 3389110803617 HS code: 8536.90 Sales unit: pcs Package quantity: 15 pcs Voltage: 24 V AC Number of poles: 3P Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Motor control; Resistive load Utilisation category: AC-3; AC-4; AC-1; AC-3e Poles description: 3P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC [Ie] rated operational current: 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit [Uc] control circuit voltage: 24 V AC 50/60 Hz Motor power kW: 4 kW at 220...230 V AC 50/60 Hz (AC-3); 7.5 kW at 380...400 V AC 50/60 Hz (AC-3); 9 kW at 415...440 V AC 50/60 Hz (AC-3); 10 kW at 500 V AC 50/60 Hz (AC-3); 10 kW at 660...690 V AC 50/60 Hz (AC-3); 4 kW at 400 V AC 50/60 Hz (AC-4); 4 kW at 220...230 V AC 50/60 Hz (AC-3e); 7.5 kW at 380...400 V AC 50/60 Hz (AC-3e); 9 kW at 415...440 V AC 50/60 Hz (AC-3e); 10 kW at 500 V AC 50/60 Hz (AC-3e); 10 kW at 660...690 V AC 50/60 Hz (AC-3e) Motor power hp: 1 hp at 115 V AC 50/60 Hz for 1 phase motors; 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 5 hp at 200/208 V AC 50/60 Hz for 3 phases motors; 5 hp at 230/240 V AC 50/60 Hz for 3 phases motors; 10 hp at 460/480 V AC 50/60 Hz for 3 phases motors; 15 hp at 575/600 V AC 50/60 Hz for 3 phases motors Compatibility code: LC1D Pole contact composition: 3 NO Protective cover: With [Ith] conventional free air thermal current: 25 A (at 60 °C) for power circuit; 10 A (at 60 °C) for signalling circuit Irms rated making capacity: 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 300 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 300 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current: 145 A 40 °C - 10 s for power circuit; 240 A 40 °C - 1 s for power circuit; 40 A 40 °C - 10 min for power circuit; 84 A 40 °C - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit Associated fuse rating: 10 A gG for signalling circuit conforming to IEC 60947-5-1; 50 A gG at <= 690 V coordination type 1 for power circuit; 35 A gG at <= 690 V coordination type 2 for power circuit Average impedance: 2.5 mOhm - Ith 25 A 50 Hz for power circuit Power dissipation per pole: 2.5 W AC-1; 0.8 W AC-3; 0.8 W AC-3e [Ui] rated insulation voltage: Power circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Signalling circuit: 690 V conforming to IEC 60947-1; Signalling circuit: 600 V CSA certified; Signalling circuit: 600 V UL certified Overvoltage category: III Pollution degree: 3 [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 15 Mcycles Electrical durability: 1.65 Mcycles 18 A AC-3 at Ue <= 440 V; 1 Mcycles 32 A AC-1 at Ue <= 440 V; 1.65 Mcycles 25 A AC-3e at Ue <= 440 V Control circuit type: AC at 50/60 Hz Coil technology: Without built-in suppressor module Control circuit voltage limits: 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz; 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz; 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz Inrush power in VA: 70 VA 60 Hz cos phi 0.75 (at 20 °C); 70 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 7.5 VA 60 Hz cos phi 0.3 (at 20 °C); 7 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 2…3 W at 50/60 Hz Operating time: 12...22 ms closing; 4...19 ms opening Maximum operating rate: 3600 cyc/h at 60 °C Connections - terminals: Control circuit: spring terminals 1 2.5 mm² - cable stiffness: flexible without cable end; Control circuit: spring terminals 2 2.5 mm² - cable stiffness: flexible without cable end; Power circuit: spring terminals 1 4 mm² - cable stiffness: flexible without cable end; Power circuit: spring terminals 2 4 mm² - cable stiffness: flexible without cable end Auxiliary contact composition: 1 NO + 1 NC Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1 Signalling circuit frequency: 25...400 Hz minimum switching voltage: 17 V for signalling circuit minimum switching current: 5 mA for signalling circuit Insulation resistance: > 10 MOhm for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Mounting support: Plate; Rail Standards: CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; UL 60947-4-1; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ; CSA C22.2 No 60947-4-1 Product certifications: UL; CCC; CSA; Marine; UKCA; EAC; CB Scheme IP degree of protection: IP20 front face conforming to IEC 60529 Protective treatment: TH conforming to IEC 60068-2-30 Climatic withstand: conforming to IACS E10 exposure to damp heat; conforming to IEC 60947-1 Annex Q category D exposure to damp heat Permissible ambient air temperature around the device: -40…60 °C; 60…70 °C with derating Operating altitude: 0...3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Vibrations contactor open (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) ; Shocks contactor open (10 Gn for 11 ms) ; Shocks contactor closed (15 Gn for 11 ms) Height: 99 mm Width: 45 mm Depth: 86 mm Product weight: 0.33 kg Warranty (in months): 18

HS Code

8536.90

• EAN 3389110803617
• SAP 1000253270
• Code 81133834
