Schneider Electric Replacement contactor coil, TeSys D, 400 V AC 50/60 Hz, for LC1D09...D38 and LC1DT20...DT40 contactors and CAD relays LXD1V7

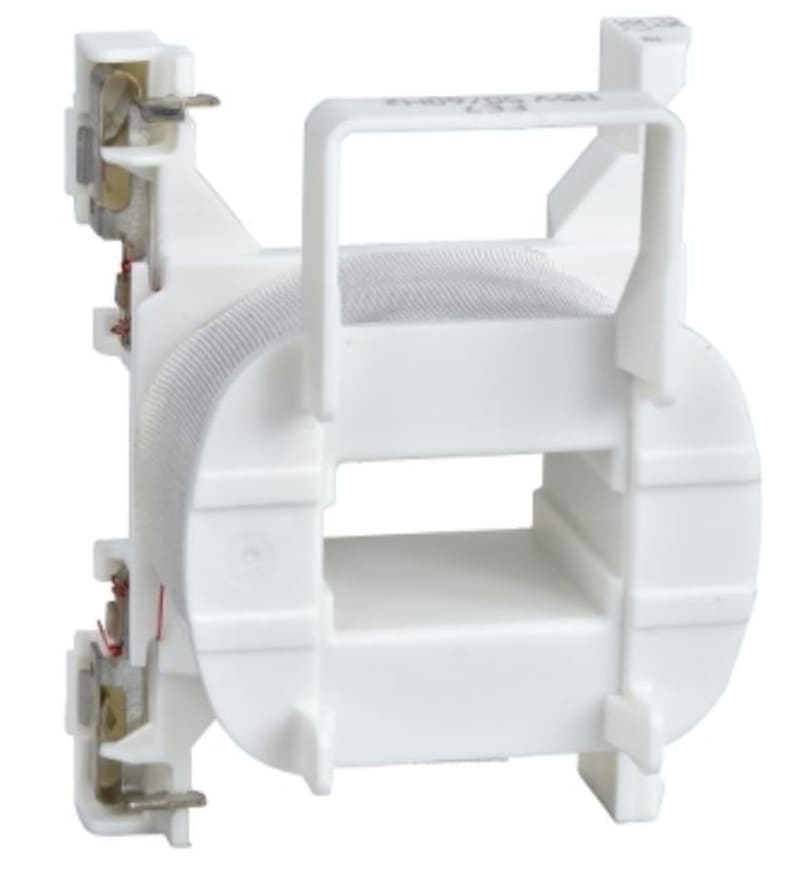

Replacement control coil for TeSys D contactors and CAD control relays. Rated control circuit voltage [Uc] 400 V AC at 50/60 Hz, average coil resistance 1633 Ohm at 20 °C, closed-circuit inductance 60 H. Inrush 70 VA at cos phi 0.75, hold-in 7...7.5 VA at cos phi 0.3, heat dissipation 2...3 W. Fits LC1D09 to LC1D38 and LC1DT20 to LC1DT40 contactors and CAD relays. Supplied without a built-in suppressor module, so a separate surge suppressor is required where the control circuit calls for one. Operating limits 0.8...1.1 Uc at 50 Hz and 0.85...1.1 Uc at 60 Hz, drop-out 0.3...0.6 Uc, ambient air temperature -5...60 °C, mechanical durability 15 million cycles at up to 3600 operating cycles/h. Weight 0.07 kg. Country of origin FR. HS code 8536.90. Schneider reference: SAP 1000004067, code 823632.

Manufacturer part number (MPN)

LXD1V7

EAN / GTIN

3389110467963

HS code

8536.90

Sales unit

pcs

Package quantity

100 pcs

Voltage

400 V

Frequency

50/60 Hz

Range

TeSys

Product or component type

Contactor coil

Device short name

LXD1

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

400 V AC 50/60 Hz

Average resistance

1633 Ohm at 20 °C

Inductance of closed circuit

60 H

Product compatibility

CAD; LC1DT20...DT40; LC1D09...D38

Mechanical durability

15 Mcycles

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in VA

70 VA 60 Hz cos phi 0.75 (at 20 °C); 70 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

7.5 VA 60 Hz cos phi 0.3 (at 20 °C); 7 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

2…3 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Product weight

0.07 kg

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90
