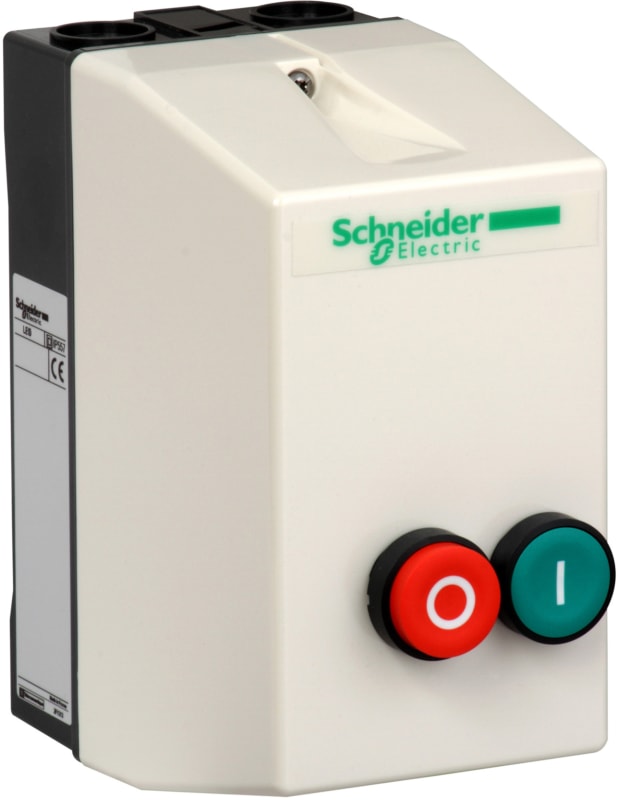

Schneider Electric LE1D09P7 TeSys LE - enclosed DOL starter - 9 A - 230 V AC coil

Schneider Electric LE1D09P7 TeSys LE - enclosed DOL starter - 9 A - 230 V AC coil is listed under Drives & Controllers / Motor Starters. Sales unit: pcs; Voltage: 230 V AC; Range: TeSys; Product name: TeSys LE; Device short name: LE1D; Product or component type: Enclosed DOL starter.

Manufacturer part number (MPN)

LE1D09P7

EAN / GTIN

3389110541243

Sales unit

pcs

Voltage

230 V AC

Range

TeSys

Product name

TeSys LE

Device short name

LE1D

Product or component type

Enclosed DOL starter

Device application

Standard

Utilisation category

AC-3

Device composition

Thermal overload relay ordered separately; Contactor

Control type

Push-button start green I; Push-button stop/reset red O

Motor power kW

4 kW at 380/400 V AC 50/60 Hz; 4 kW at 415 V AC 50/60 Hz; 4 kW at 440 V AC 50/60 Hz; 2.2 kW at 220/230 V AC 50/60 Hz; 5.5 kW at 500 V AC 50/60 Hz; 5.5 kW at 660/690 V AC 50/60 Hz

[Uc] control circuit voltage

230 V AC 50/60 Hz

[Ith] Conventional free air thermal current

9 A

Cable entry number

2 ISO20 top; 2 ISO20 bottom

Width

88 mm

Height

166 mm

Depth

128.5 mm

Product weight

0.92 kg

Standards

IEC 60947-4-1; UL 60947-4-1

Product certifications

CB Scheme; UL; CE; UKCA

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 60529

Ambient air temperature for operation

-5…40 °C

Material

Polycarbonate

Environmental characteristic

Standard environment

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

17.500 cm

Package 1 Width

15.000 cm

Package 1 Length

21.000 cm

Package 1 Weight

874.000 g

Unit Type of Package 2

P06

Number of Units in Package 2

30

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

39.640 kg

Country of origin

FR

Warranty (in months)

18

With transformer

No

Rated operation power at AC-3, 400 V

4 kW

Number of command positions

2

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Suitable for emergency stop

No

Rated operation current Ie

9 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

Yes

Suitable for rail mounting

No

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Degree of protection (IP)

IP65

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

With short-circuit release

No

With fuse

No

Type of electrical connection of main circuit

Screw connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

AC

Type of motor starter

Direct online starter (DOL)

Rated operation power at AC-3, 230 V, 3-phase

2.2 kW

Rated power, 460 V, 60 Hz, 3-phase

4 kW

Rated power, 575 V, 60 Hz, 3-phase

5.5 kW

Rated operation current at AC-3, 400 V

9 A

Ambient temperature, upper operating limit

40 °C

Temperature compensated overload protection

No

HS Code

8537.10
