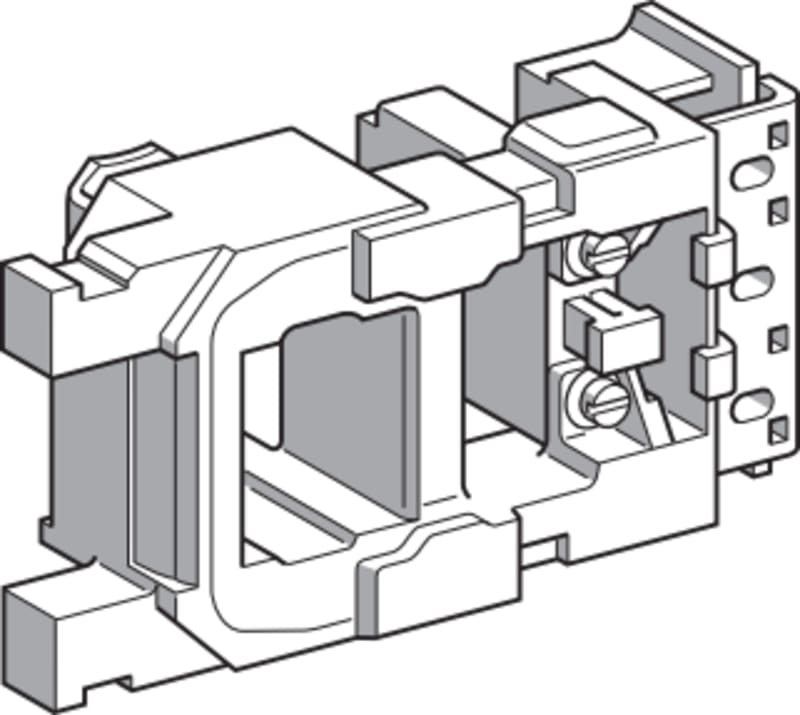

Schneider Electric TeSys F - contactor coil - LX4FG - 220...230 V DC LX4FG220

Schneider Electric LX4FG220 coil LC1F185/F225 220VDC.

Manufacturer part number (MPN)

LX4FG220

EAN / GTIN

3389110083637

Sales unit

pcs

Package quantity

18 pcs

Voltage

220 V

Range

TeSys

Product or component type

Contactor coil

Device short name

LX4FG

Range compatibility

TeSys TeSys F LC1F contactor

Product compatibility

LC1F185; LC1F225

Control circuit type

DC low consumption

[Uc] control circuit voltage

220...230 V DC

Inductance of closed circuit

890 H

Average resistance

57.7 Ohm inrush at 20 °C; 10200 Ohm holding at 20 °C

Operating time

30...40 ms closing; 30...50 ms opening

Mechanical durability

10 Mcycles

Maximum operating rate

2400 cyc/h 55 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Operational: 0.85...1.1 Uc (at 55 °C); Drop-out: 0.15...0.2 Uc (at 55 °C)

Inrush power in W

800 W (at 20 °C)

Hold-in power consumption in W

5 W at 20 °C

Ambient air temperature for operation

-5…55 °C

Product weight

0.55 kg

Number of Units in Package 1

1

Number of Units in Package 2

14

Warranty (in months)

18

Rated control supply voltage DC

220–230 V

Voltage type for actuating

DC

Country of origin

Czechia

HS Code

8504.50
