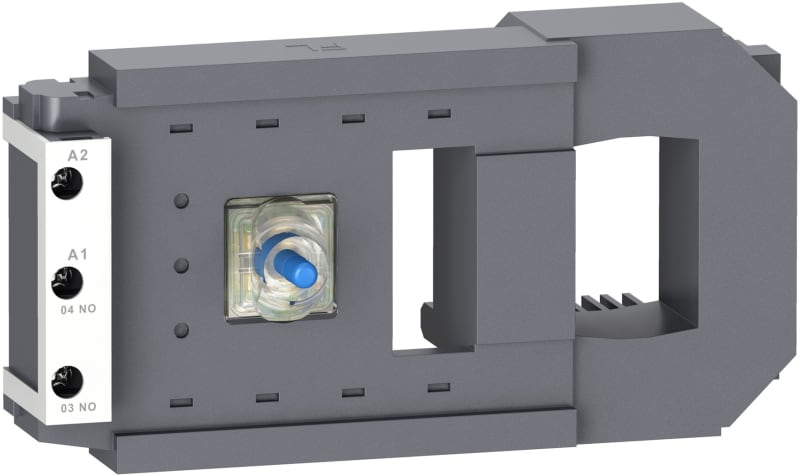

Schneider Electric TeSys F - contactor coil - LX1FL - 220...240 V AC 40...400 Hz LX1FL220

Schneider Electric LX1FL220 coil 220V 50HZ LC1F630.

Manufacturer part number (MPN)

LX1FL220

EAN / GTIN

3389110082425

Sales unit

pcs

Package quantity

6 pcs

Voltage

220 V

Frequency

50/60 Hz

Range

TeSys

Product or component type

Contactor coil

Device short name

LX1FL

Range compatibility

TeSys TeSys F LC1F contactor

Product compatibility

LC1F630; LC1F1250

Control circuit type

AC at 40...400 Hz

[Uc] control circuit voltage

220...240 V AC 40...400 Hz

Inductance of closed circuit

3.35 H

Average resistance

25.5 Ohm inrush at 20 °C; 730 Ohm holding at 20 °C

Operating time

100...200 ms opening; 40...80 ms closing

Mechanical durability

5 Mcycles

Maximum operating rate

1200 cyc/h 55 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C); Drop-out: 0.25...0.5 Uc 40...400 Hz (at 55 °C)

Inrush power in VA

1650 VA 40...400 Hz cos phi 0.9 (at 20 °C)

Hold-in power consumption in VA

22 VA 40...400 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

20 W at 40...400 Hz

Ambient air temperature for operation

-5…55 °C

Product weight

1.5 kg

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

220–240 V

Rated control supply voltage AC 60 Hz

220–240 V

Voltage type for actuating

AC

Country of origin

Czechia

HS Code

8504.50

• EAN 3389110082425
• SAP 1000025464
• Code 8226335
