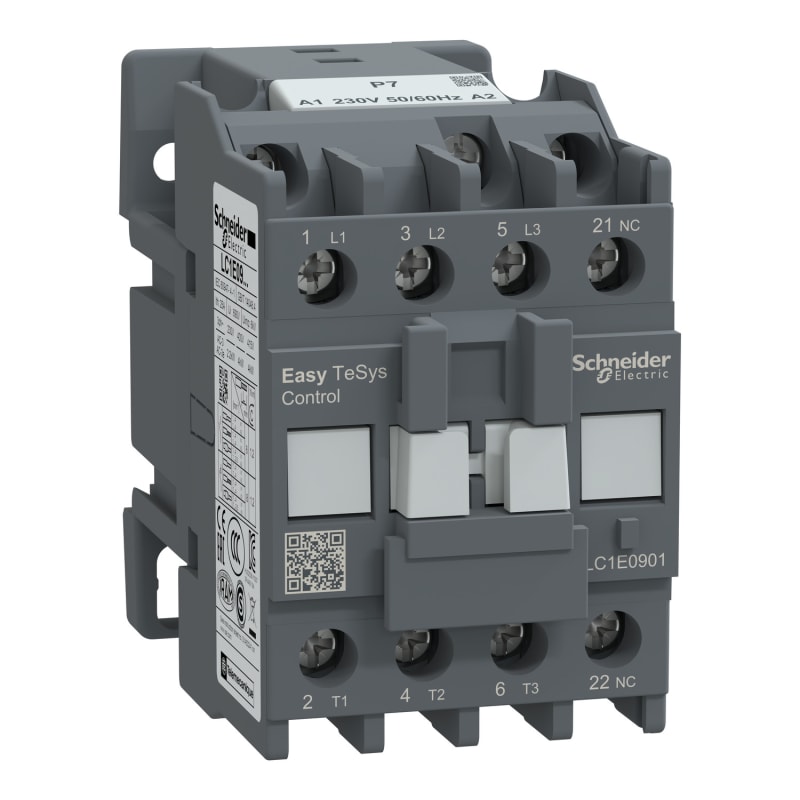

Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,9A,230V AC coil,1NC auxiliary contact LC1E0901P7

Schneider Electric LC1E0901P7 Contactor, Easy TeSys, 3P (3NO), AC-3, 400V, 9A, 230V AC coil, 50/60Hz, 1NC auxiliary contact.

Manufacturer part number (MPN)

LC1E0901P7 EAN / GTIN: 3606480894626 HS code: 8536.90 Sales unit: pcs Package quantity: 36 pcs Voltage: 230 V Contact configuration: 1 NC Range: Easy TeSys Range of product: Easy TeSys Control Product or component type: Contactor Device short name: LC1E Contactor application: Motor control; Resistive load Utilisation category: AC-3; AC-3e; AC-1 Poles description: 3P [Ue] rated operational voltage: Power circuit: <= 690 V AC 50/60 Hz [Ie] rated operational current: 9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit; 9 A (at <55 °C) at <= 440 V AC AC-3e for power circuit; 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit [Uc] control circuit voltage: 230 V AC 50/60 Hz Motor power kW: 2.2 kW at 220/230 V AC 50/60 Hz; 4 kW at 380/400 V AC; 4 kW at 415/440 V AC; 4 kW at 500 V AC; 4 kW at 660/690 V AC; 5.5 kW at 660...690 V Pole contact composition: 3 NO [Ith] conventional free air thermal current: 25 A (at 55 °C) for power circuit Irms rated making capacity: 117 A at 440 V AC for power circuit conforming to IEC 60947-4-1 Rated breaking capacity: 76.5 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current: 105 A 40 °C - 10 s for power circuit; 61 A 40 °C - 60 s for power circuit; 30 A 40 °C - 600 s for power circuit Associated fuse rating: 20 A gG at <= 690 V coordination type 1 for power circuit; 10 A gG at <= 690 V for auxiliary contact circuit conforming to IEC 60947-5-1 Average impedance: 2.5 mOhm - Ith 25 A 50 Hz for power circuit Power dissipation per pole: 0.2 W AC-3; 1.6 W AC-1 [Ui] rated insulation voltage: 690 V conforming to IEC 60947-4-1 Overvoltage category: III Pollution degree: 3 [Uimp] rated impulse withstand voltage: 6 kV coil not connected to the power circuit conforming to IEC 60947 Mechanical durability: 10000000 cycles Electrical durability: 1400000 cycles AC-3; 150000 cycles AC-1 Control circuit type: AC at 50/60 Hz Control circuit voltage limits: 0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz; 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz Inrush power in VA: 95 VA 50 Hz cos phi 0.75 (at 20 °C); 95 VA 60 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 8.3 VA 50 Hz cos phi 0.3 (at 20 °C); 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 2…3 W for control circuit Operating time: 12...22 ms on closing; 4...19 ms on opening Maximum operating rate: 1800 cyc/h 60 °C Connections - terminals: Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Tightening torque: Power circuit: 1.2 N.m; Control circuit: 1.2 N.m Auxiliary contact composition: 1 NC minimum switching voltage: 17 V for auxiliary contact circuit minimum switching current: 5 mA for auxiliary contact circuit Insulation resistance: > 10 MOhm for auxiliary contact circuit Non-overlap time: 1.5 ms on energisation guaranteed between NC and NO contact; 1.5 ms on de-energisation guaranteed between NC and NO contact Mounting support: Plate; DIN rail Standards: EN/IEC 60947-1; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GB/T 14048.1; GB/T 14048.4; GB/T 14048.5; EN/IEC 60335-1:Clause 30.2; EN/IEC 60335-2-40:Annex JJ; IS/IEC 60947-1; IS/IEC 60947-4-1; IS/IEC 60947-5-1 Product certifications: CB Scheme; CCC; CE; EAC; BIS IP degree of protection: IP2X conforming to IEC 60529 Protective treatment: TH (pollution degree 3) conforming to IEC 60068-2-30 Permissible ambient air temperature around the device: -20…70 °C at Uc; -60…80 °C storage; -5…55 °C operation Operating altitude: 3000 m without derating Fire resistance: 850 °C conforming to IEC 60695-2-1 Mechanical robustness: Vibrations contactor open (1.5 Gn, 5...300 Hz) ; Vibrations contactor closed (3 Gn, 5...300 Hz) ; Shocks contactor open (7 Gn for 11 ms) ; Shocks contactor closed (10 Gn for 11 ms) Height: 74 mm Width: 45 mm Depth: 80 mm Product weight: 0.3 kg Warranty (in months): 18

HS Code

8536.90

• EAN 3606480894626
• SAP 1200899858
• Code 84154862
