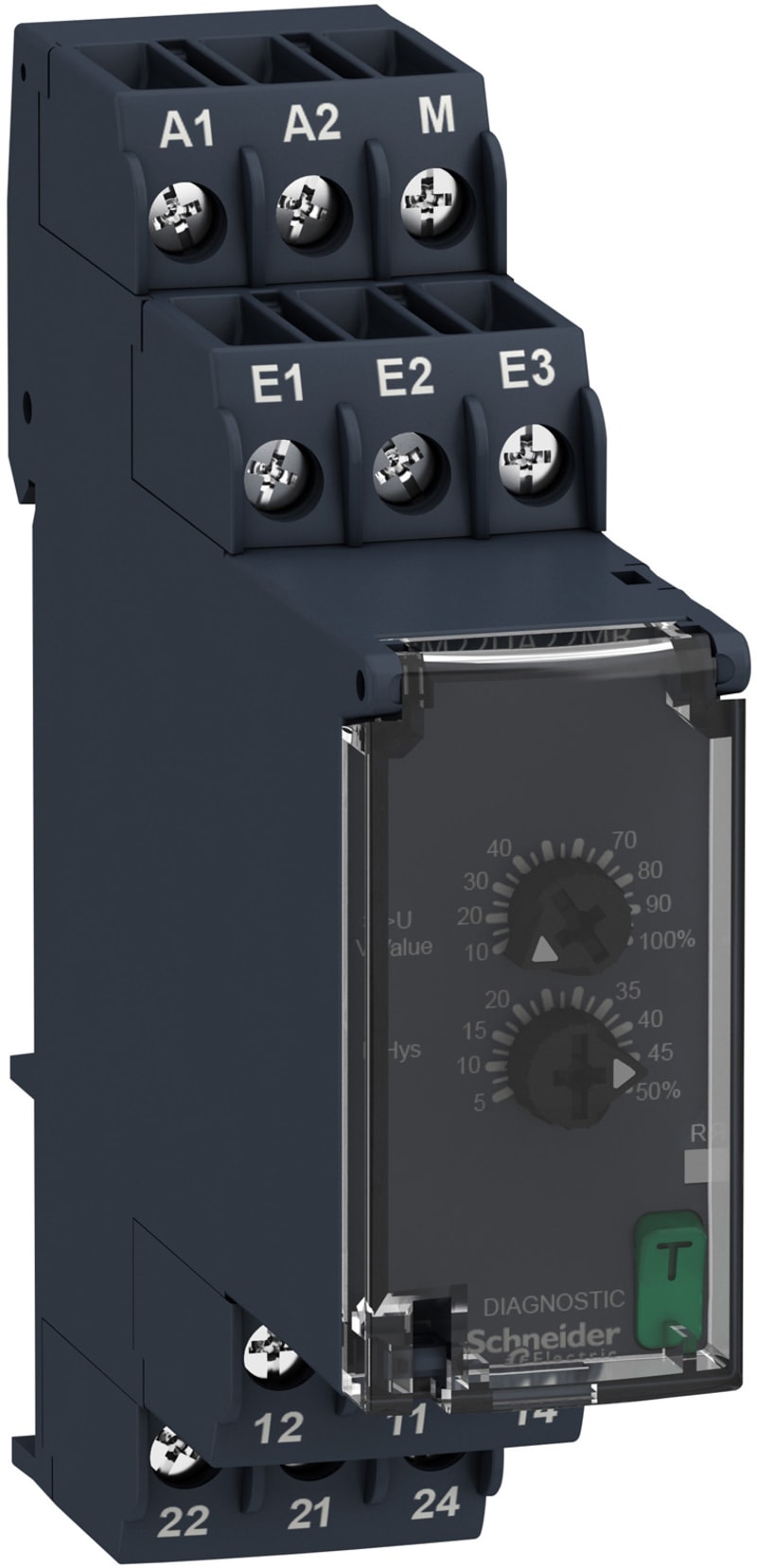

Schneider Electric Overvoltage Control Relay 1V…100VAC/DC, 2 C/O RM22UA22MR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric RM22UA22MR Zelio control relay, overvoltage.
Technical Specifications
- Manufacturer part number (MPN)
- RM22UA22MR EAN / GTIN: 3606480792212 Sales unit: pcs Package quantity: 40 pcs Range of product: Harmony Control Relays Relay type: Voltage control relay Product or component type: Voltage control relay Relay name: RM22UA Network number of phases: 1 phase Relay monitored parameters: Overvoltage detection Supply circuit type: DC Control type: With test button Contacts type and composition: 2 C/O [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz, non self-powered Supply voltage limits: 20.4…264 V AC/DC Measurement range: 1...100 V AC/DC Hysteresis: 5…50 % adjustable of threshold setting Repeat accuracy: +/- 0.5 % for input and measurement circuit Measurement error: < 1 % over the whole range with voltage variation; 0.05 %/°C with temperature variation Time delay type: Without Reset time: 1500 ms at maximum voltage Response time: <= 500 ms Power on delay: 600 ms Output contacts: 2 C/O nominal output current: 8 A Maximum switching voltage: 250 V AC Switchi
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 3606480792212
- SAP 1000713429
- Code 8332074
Product Documentation
More from Schneider Electric
Schneider Electric
Modular end plate (NSYADC18)
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi C120, 3P, 125A, A-SI type, selective, 1000MA, 230...415VAC A9N18559
Schneider Electric
Schneider Electric Modicon STB - bus extension kit STBXBE2100K
Schneider Electric
Schneider Electric Power Cord Kit (6 ea), Locking, C19 to C20, 1.8M AP8716S
Schneider Electric
Schneider Electric ACTI9 iID - Residual Current Circuit Breaker - 2P - 63A - 300MA - B-SI type A9Z64263
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX160M AC/DC, 40KA/240VAC, 1 pole, TMD trip unit 125A C16M1TM125
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100S AC/DC, 70KA/415VAC, 2 poles, TMD trip unit 16A C10S2TM016
Schneider Electric
Push-button flush white with text (ZB4FA334)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy RM22UA22MR?
- RM22UA22MR can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is RM22UA22MR.
- What is the HS code for RM22UA22MR?
- The customs tariff (HS) code for RM22UA22MR is 8536.41.
- Who manufactures RM22UA22MR?
- RM22UA22MR is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for RM22UA22MR?
- Yes — the RM22UA22MR datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for RM22UA22MR?
- The minimum order quantity is 1.
- Is RM22UA22MR available?
- Yes — RM22UA22MR is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
