Kit Selector switch black IP54 Tesys U
Pricing
Request a quote
We reply within 24 hours
Product Description

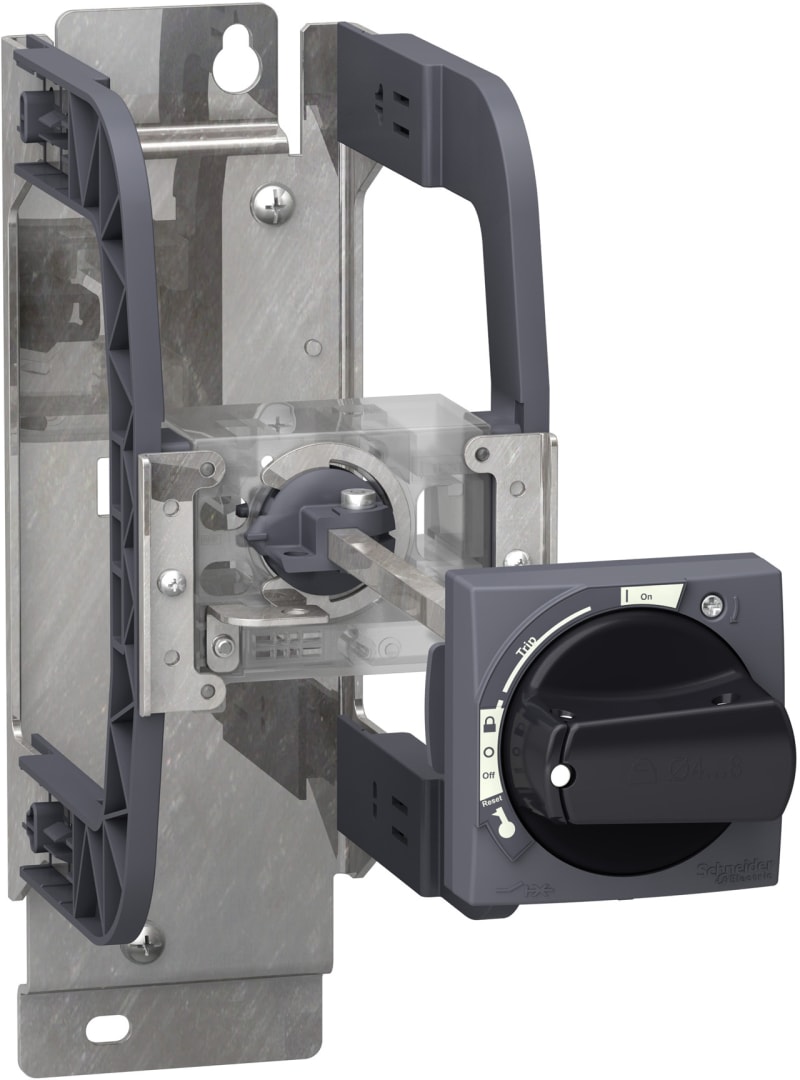

Schneider Electric LU9APN21 Kit Selector switch black IP54 Tesys U.
Technical Specifications
- Manufacturer part number (MPN)
- LU9APN21
- EAN / GTIN
- 3606480160974
- Sales unit
- pcs
- Package quantity
- 6 pcs
- IP rating
- IP54
- Range
- TeSys
- Device short name
- LU9A
- Product or component type
- Mounting bracket kit
- Accessory / separate part category
- Control accessory
- Handle colour
- Black
- Handle front plate colour
- Grey
- Product compatibility
- LUB
- Rotary handle padlocking
- Padlock in ON position; Padlock in OFF position
- Rotary handle mounting style
- Extended
- Locking options description
- 1 to 3 padlocks
- Back/door distance
- 191…300 mm
- Product weight
- 0.49 kg
- IP degree of protection
- IP54
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- CZ
- Warranty (in months)
- 18
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- Yes
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- No
- With key lock
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480160974
- SAP 1000253682
- Code 81134013
Product Documentation
More from Schneider Electric
Schneider Electric

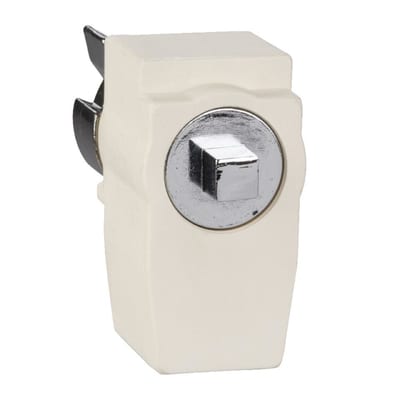

Schneider Electric Bloc with insert, PrismaSeT P and G, 6mm male square insert LVS07951
Schneider Electric

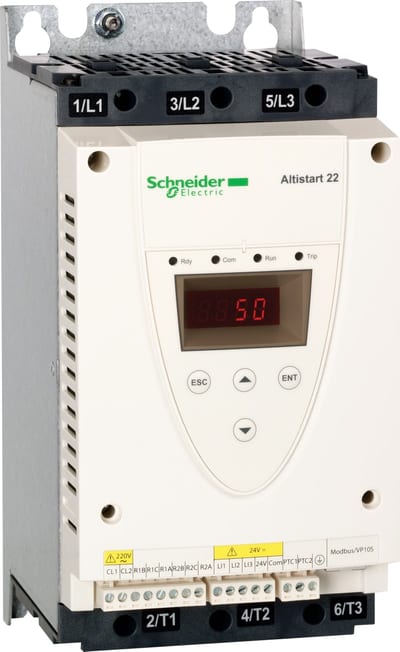

Schneider Electric soft STARTER-ATS22-CONTROL 220V-POWER 230V(4kW)/400...440V(7.5kW)/500V(9kW) ATS22D17S6
Schneider Electric

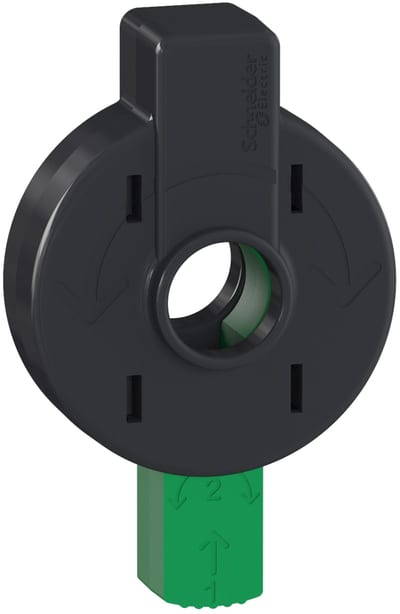

Handle for open door NSXm
LV426937
Schneider Electric

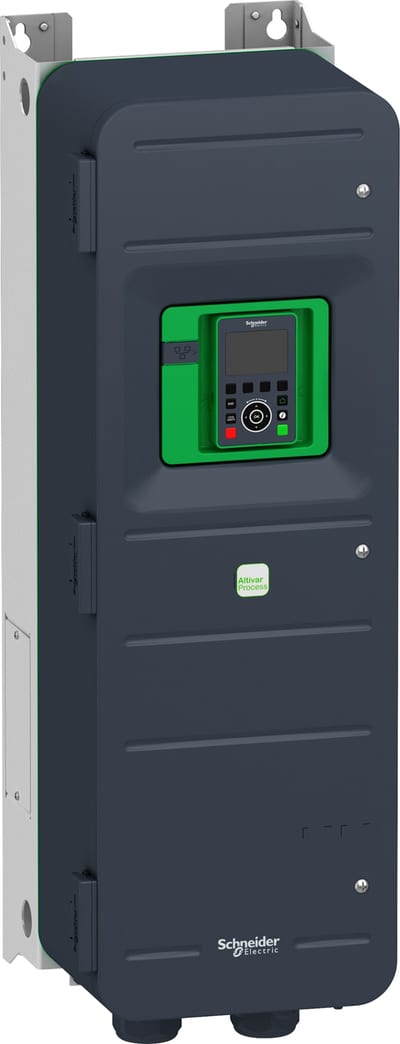

Schneider Electric variable speed drive ATV650 - 45KW/60HP - 380...480V - IP55 ATV650D45N4
Schneider Electric

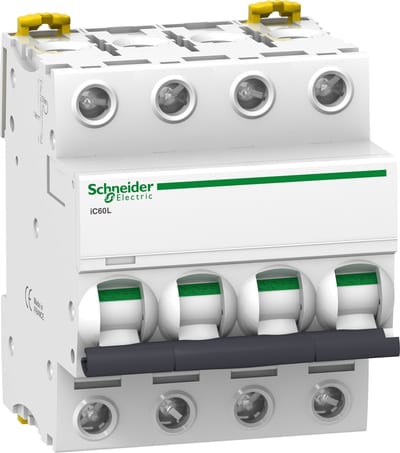

Schneider Electric A9F92404 ACTI9 IC60L Miniature Circuit Breaker 4P 4 A, Curve Z
Schneider Electric

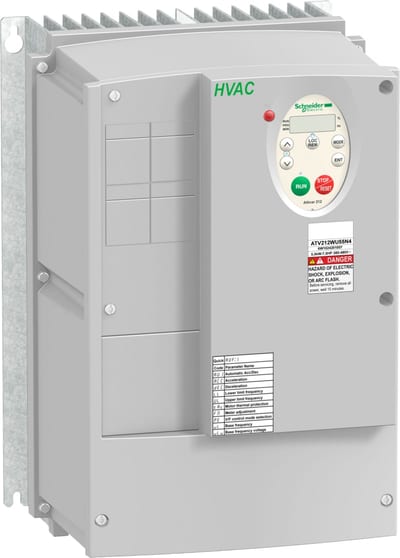

Schneider Electric variable speed drive ATV212 - 5.5kW - 7.5hp - 480V - 3PH - EMC class C1 - IP55 ATV212WU55N4C
Schneider Electric

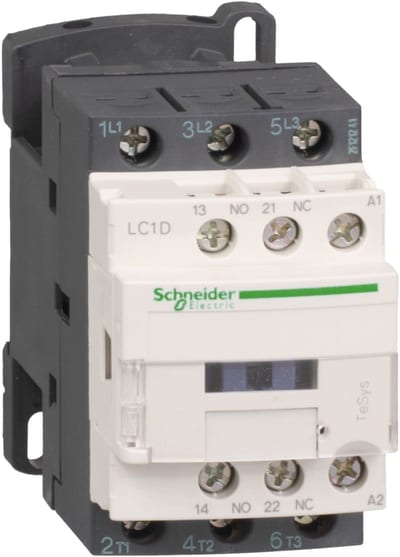

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 42V AC 50/60Hz coil, screw clamp terminals LC1D09D7
Schneider Electric

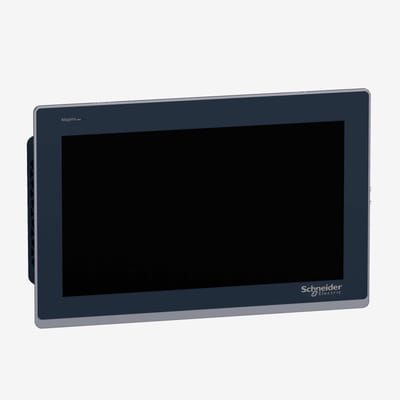

Schneider Electric Touch panel screen, Harmony ST6 & STW6, 15"W display, 2ETHERNET, USB host&device, 24 VDC HMISTW6700
