EMC additional filter IP00 300A
Pricing
Request a quote
We reply within 24 hours
Product Description

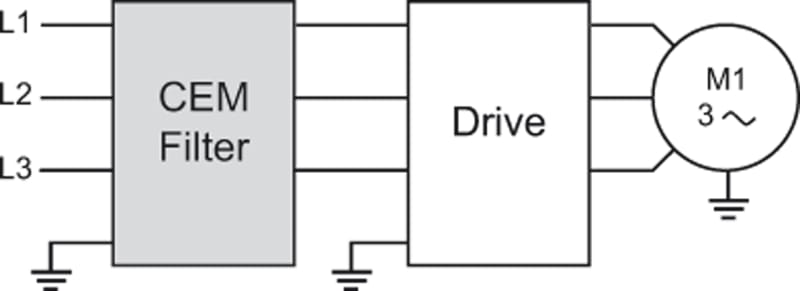

Schneider Electric VW3A4710 EMC additional filter IP00 300A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A4710
- EAN / GTIN
- 3606480736599
- Sales unit
- pcs
- IP rating
- IP00
- Range of product
- Altivar
- Product or component type
- EMC input filter
- Range compatibility
- Altivar Process ATV600; Altivar Process ATV900
- Product compatibility
- Variable speed drive ATV630 wall mount, motor: 160 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 75 kW, 200...240 V; Variable speed drive ATV930 wall mount, motor: 160 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 75 kW, 200...240 V
- Product specific application
- Radio interference input filter
- [In] rated current
- 305 A
- Network number of phases
- Three phase
- Electrical connection
- Copper bar M12
- Maximum motor cable length
- 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V; 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V
- maximum earth leakage current
- 27.8 mA at 400 V 50 Hz TN; 27.8 mA at 400 V 50 Hz TT
- power supply voltage
- 200…240 V; 380…480 V
- Tolerance
- 10 %
- Mechanical robustness
- Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3
- Width
- 260 mm
- Height
- 520 mm
- Depth
- 117 mm
- Product weight
- 17 kg
- IP degree of protection
- IP00
- Relative humidity
- 5…95 % without condensation conforming to IEC 61800-5-1
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Ambient air temperature for storage
- -40…70 °C
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Standards
- IEC 61800-3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480736599
- SAP 1000708127
- Code 8667380
Product Documentation
