Schneider Electric

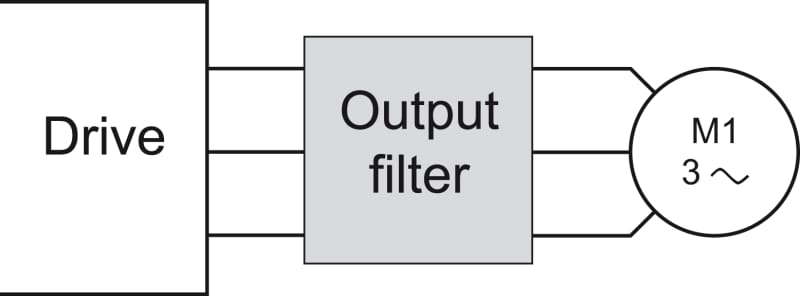

Output Filter DV/DT IP20 180A
Part numberVW3A5306EAN / GTIN3606480736735HS code8548.90
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A5306 Output Filter dv/dt IP20 180A.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A5306
- EAN / GTIN
- 3606480736735
- Sales unit
- pcs
- IP rating
- IP20
- Product or component type
- Dv/dt filter
- Range compatibility
- Altivar Process ATV900; Easy Altivar 610; Altivar Process ATV600; Altivar Machine ATV340
- Product specific application
- Output filter
- [In] rated current
- 180 A
- Product compatibility
- ATV630 variable speed drive wall mount - 30 kW, 200...240 V; ATV630 variable speed drive wall mount - 37 kW, 200...240 V; ATV630 variable speed drive wall mount - 45 kW, 200...240 V; ATV630 variable speed drive wall mount - 55 kW, 380...480 V; ATV630 variable speed drive wall mount - 75 kW, 380...480 V; ATV630 variable speed drive wall mount - 90 kW, 380...480 V; ATV650 variable speed drive wall mount - 55 kW, 380...480 V; ATV650 variable speed drive wall mount - 75 kW, 380...480 V; ATV650 variable speed drive wall mount - 90 kW, 380...480 V; ATV610 variable speed drive - 55 kW, 380...415 V; ATV610 variable speed drive - 75 kW, 380...415 V; ATV610 variable speed drive - 90 kW, 380...415 V; ATV930 variable speed drive wall mount - 30 kW, 200...240 V; ATV930 variable speed drive wall mount - 37 kW, 200...240 V; ATV930 variable speed drive wall mount - 45 kW, 200...240 V; ATV930 variable speed drive wall mount - 55 kW, 380...480 V; ATV930 variable speed drive wall mount - 75 kW, 380...480 V; ATV930 variable speed drive wall mount - 90 kW, 380...480 V; ATV950 variable speed drive wall mount - 55 kW, 380...480 V; ATV950 variable speed drive wall mount - 75 kW, 380...480 V; ATV950 variable speed drive wall mount - 90 kW, 380...480 V
- nedded quantity
- 1
- Electrical connection
- Copper bar M10, connection capacity: 120 mm² / 4/0 AWG
- Maximum motor cable length
- 500 m unshielded cable; 300 m shielded cable
- dv/dt
- 3000 V/µs max at 200...240 V; 3000 V/µs max at 380...480 V
- Thermal losses
- 176 W at 4 kHz
- maximum drive output frequency
- 100 Hz
- Ambient air temperature for operation
- -10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)
- Operating altitude
- 0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m
- Width
- 380 mm
- Height
- 350 mm
- Depth
- 235 mm
- Product weight
- 22 kg
- IP degree of protection
- IP00
- Ambient air temperature for storage
- -40…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Filter
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8548.90
Cross References
- EAN 3606480736735
- SAP 1000659423
- Code 8234648
Product Documentation
