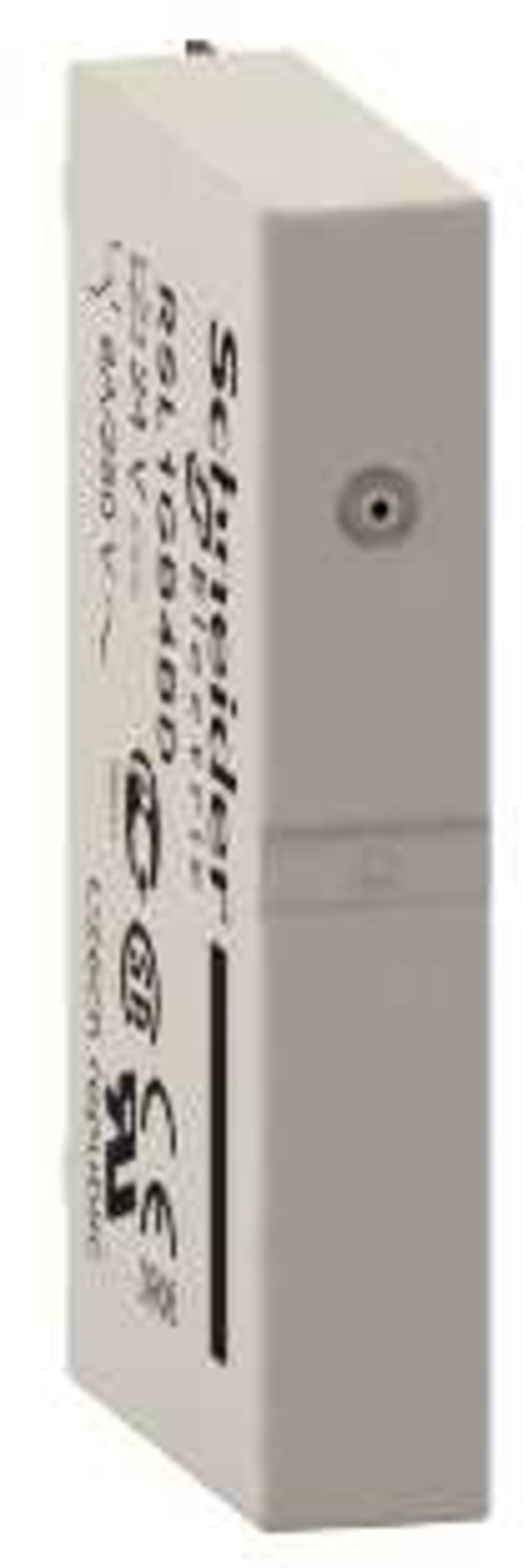

Schneider Electric Slim interface plug-in relay, 6 A, 1 CO, standard, 12 V DC RSL1AB4JD

Schneider Electric RSL1AB4JD Relay 1CO 6A 12VDC.

Manufacturer part number (MPN)

RSL1AB4JD EAN / GTIN: 3606480077951 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 12 V DC Rated current: 6 A Range of product: Harmony Electromechanical Relays Series name: RSL series Product or component type: Plug-in relay Relay type: Slim interface relay Contact operation: Standard Contacts type and composition: 1 C/O Control type: Without lockable test button status LED: Without [Uc] control circuit voltage: 12 V DC [Ithe] conventional enclosed thermal current: 6 A at -40…55 °C [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC [Ie] rated operational current: 6 A (AC-1/DC-1) conforming to IEC/UL minimum switching current: 10 mA minimum switching voltage: 12 V minimum switching capacity: 120 mW Rated operational voltage limits: 9...16.8 V DC [Ui] rated insulation voltage: 250 V conforming to IEC; 277 V conforming to cUL Operating time: 5 ms reset; 12 ms Maximum switching voltage: 277 V Drop-out voltage threshold: >= 0.05 Uc Load current: 6 A at 250 V AC 0.5 mm mounting distance Maximum switching capacity: 1500 VA; 50 W Terminals description ISO n°1: (A1-A2)CO; (11-12-14)OC Average resistance: 848 Ohm at 23 °C +/- 10 % Average coil consumption: 0.17 W Mechanical durability: 10000000 cycles Electrical durability: 60000 cycles, 6 A at 250 V, AC-1 C/O Safety reliability data: B10d = 60000 Operating rate: <= 360 cycles/hour under load; <= 18000 cycles/hour no-load Protection category: RT III Mounting support: Socket or PCB Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Contacts material: Silver alloy (AgSnO2) Shape of pin: Flat (PCB type) Width: 5 mm Height: 28 mm Depth: 18.5 mm Product weight: 0.0054 kg Dielectric strength: 1000 V AC between contacts; 4000 V AC between coil and contact Vibration resistance: +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 IP degree of protection: IP40 conforming to IEC 60529 Ambient air temperature for operation: -40…55 °C Standards: UL 508; IEC 61810-1; CSA C22.2 No 14 Product certifications: EAC; CSA; UL Ambient air temperature for storage: -40…70 °C Shock resistance: 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27; 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3606480077951
• SAP 1000090667
• Code 8925592
