Schneider Electric TeSys T operator control unit

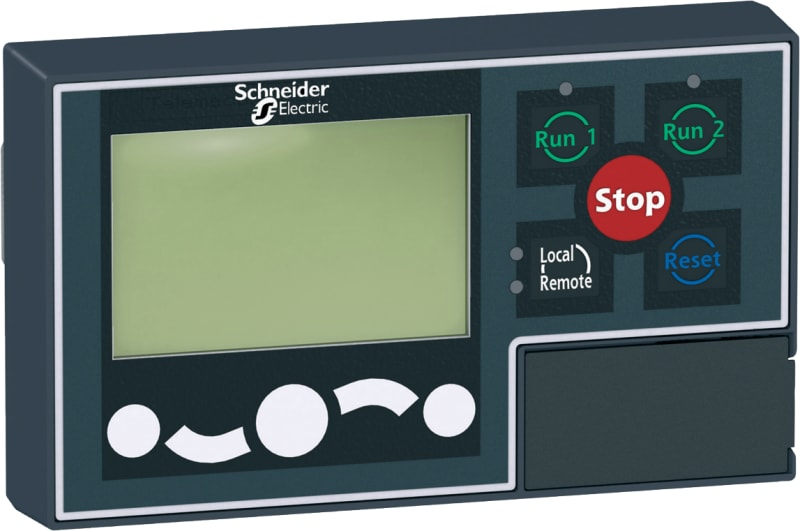

Schneider Electric LTMCU operator control unit for the TeSys T LTMR motor management controller. Backlit LCD with four status LEDs and ten push-buttons, RJ45 connection on the rear for the controller and on the front for a PC. Flush-mounted with IP54 protection on the front face.

Manufacturer part number (MPN)

LTMCU

EAN / GTIN

3389119410014

Sales unit

pcs

Range

TeSys

Device short name

LTMCU

Product or component type

Operator control unit

Range compatibility

TeSys T LTMR motor controller

Display type

Backlit LCD

Local signalling

4 LEDs

local control

10 push-button

Device connection

Connection to a LTM R controller, RJ45 connector on rear; Connection to a PC, RJ45 connector on front

Supply

Via the controller

Maximum supply current

140 mA

Power dissipation

1 W

Standards

UL 60947-4-1A; CSA C22.2 No 60947-4-1; EN/IEC 61131-2

Product certifications

C-Tick; EAC; CSA; NOM; UL; CE

Electromagnetic compatibility

Electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6; Surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5; Fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4

IP degree of protection

IP54 (front) conforming to EN/IEC 60947-4-1; IP20 (rear) conforming to EN/IEC 60947-4-1

mounting mode

Flush-mounted

Width

117 mm

Height

70 mm

Depth

50 mm

Product weight

0.4 kg

Ambient air temperature for operation

-20…60 °C

Ambient air temperature for storage

-40…80 °C

Relative humidity

15…95 %

Protective treatment

TC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30

Mechanical robustness

Shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27; Vibrations: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6

Fire resistance

650 °C conforming to EN/IEC 60947-1

Flame retardance

V2 conforming to UL 94

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.000 cm

Package 1 Width

7.500 cm

Package 1 Length

13.500 cm

Package 1 Weight

264.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

32

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

9.108 kg

Country of origin

CN

Warranty (in months)

18

Number of status indications

4

Number of displays

1

Number of buttons

10

Suitable for front mounting

Yes

Degree of protection (IP)

IP54

HS Code

8536.20
