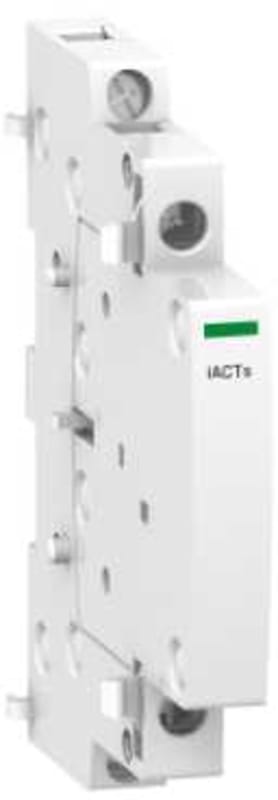

Schneider Electric Remote indication auxiliary, ACTI9 iACTs, 1 NO + 1 NC A9C15914
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9C15914 Auxiliary block iACTs 1NO+1NC for iCT.
Technical Specifications
- Manufacturer part number (MPN)
- A9C15914
- EAN / GTIN
- 3606480088667
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Contact configuration
- 1 NO + 1 NC
- Range of product
- ICT
- Range
- Acti9
- Device short name
- iACTs
- Product or component type
- Remote indication auxiliary
- Signal contacts composition
- 1 NO + 1 NC
- Signalling circuit voltage
- 24 V AC/DC: 10 mA; 230 V AC: 50/60 Hz 5 A; 230 V AC: 50/60 Hz 2 A; 130 V DC: 1 A
- [Uc] control circuit voltage
- 24...240 V AC 50/60 Hz; 24...130 V DC
- Range compatibility
- Acti9 iCT
- [Ui] rated insulation voltage
- 440 V
- [Uimp] rated impulse withstand voltage
- 4 kV
- mounting mode
- Fixed, on the right of CT
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 1
- Height
- 81 mm
- Width
- 9 mm
- Depth
- 68 mm
- Colour
- White
- Auxiliary connection terminal
- Tunnel type terminals 2 cable(s) flexible 2.5 mm²; Tunnel type terminals 2 cable(s) rigid 1.5 mm²; Tunnel type terminals 1 cable(s) rigid 1.5…2.5 mm²; Tunnel type terminals 1 cable(s) flexible 1.5…2.5 mm²
- Wire stripping length
- 9 mm
- Tightening torque
- 0.8 N.m
- Product compatibility
- ICT
- Market segment
- Small commercial; Residential
- Compatibility code
- IACTs
- Standards
- EN 60947-5
- IP degree of protection
- IP20 conforming to IEC 60529
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -5…50 °C
- Ambient air temperature for storage
- -40…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 120
- Warranty (in months)
- 18
- Function
- Signalling switch
- Voltage type
- AC/DC
- Rated voltage
- 240 V
- Installed at the factory
- No
- Width in number of modular spacings
- 0.5
- Rated switch current
- 5 A
- Device fitting
- Contactor/relay
- Additional equipment
- Signalling switch
- Voltage type for actuating
- AC/DC
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 4
- Suitable for max. current main contact unit
- 100 A
- Country of origin
- France
