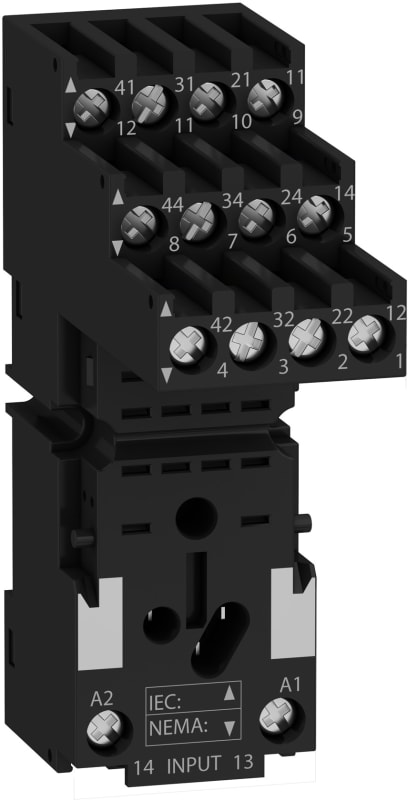

Schneider Electric RXZE2S114M Socket, separate contact, 10 A, relay type RXM2 RXM4, screw connector, 250 V AC

Schneider Electric RXZE2S114M Socket, separate contact, 10 A, relay type RXM2 RXM4, screw connector, 250 V AC is listed under Control & Automation / Relay Modules. Sales unit: pcs; Package quantity: 10 pcs; Range of product: Harmony Timer Relays; Device short name: RXZ; Product or component type: Socket; Contacts type and composition: 4 C/O.

Manufacturer part number (MPN)

RXZE2S114M

EAN / GTIN

3389119404280

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Timer Relays

Product compatibility

Plug-in relay RXM with 2 C/O contact; Plug-in relay RXM with 4 C/O contact; Plug-in relay REXL with 2 C/O contact; Plug-in relay REXL with 4 C/O contact; Plug-in relay 782H with 4 C/O contact

Device short name

RXZ

[Ith] conventional free air thermal current

10 A

Product or component type

Socket

Contacts type and composition

4 C/O

[Ue] rated operational voltage

< 250 V conforming to IEC; < 300 V conforming to UL

Connections - terminals

Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Screw connectors, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw connectors, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw connectors, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Shape of pin

Flat

Tightening torque

< 1 N.m for M3 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

Wire stripping length

8 mm

Contact terminal arrangement

Separate

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

27 mm

Product weight

0.062 kg

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

2500 V

Standards

IEC 61984

Product certifications

CSA; Lloyd's; UL

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.300 cm

Package 1 Width

2.700 cm

Package 1 Length

8.000 cm

Package 1 Weight

67.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

6.800 cm

Package 2 Width

11.500 cm

Package 2 Length

14.000 cm

Package 2 Weight

706.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

200

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

13.833 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Height

79 mm

Depth

61 mm

With detachable clamps

No

Function extension possible

No

Type of electric connection

Screw connection

Number of pins

14

HS Code

8536.69
